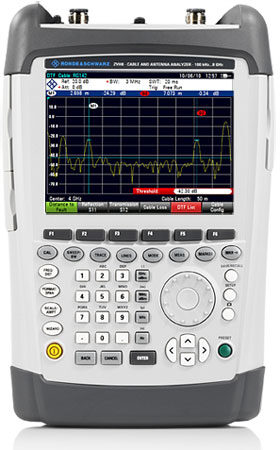

The R&S®ZVH is a rugged, handy cable and antenna analyzer, designed for use in the field. Its low weight and simple operation make it indispensable for anyone who needs an efficient measuring instrument outdoors for the installation and maintenance of antenna systems.

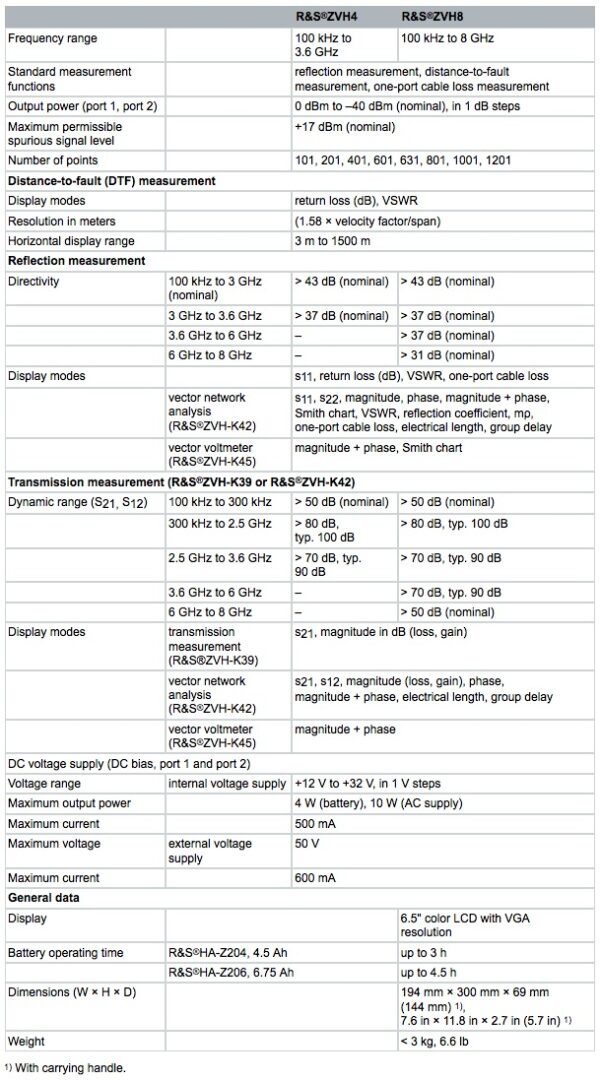

Frequency range from 100 kHz to 3.6 GHz or 8 GHz
100 dB (typ.) dynamic range for filter and antenna isolation measurements
Built-in DC voltage supply (bias) for active components such as amplifiers
Power meter option
Saving of measurement results on SD memory card or USB memory stick
Easy operation with user-configurable test sequences (wizard)
Easy-to-replace Li-ion battery for up to 4.5 h of operation
Rugged, splash-proof housing for rough work in the field
Easy handling due to low weight (3 kg with battery) and easy-to-reach function keys
