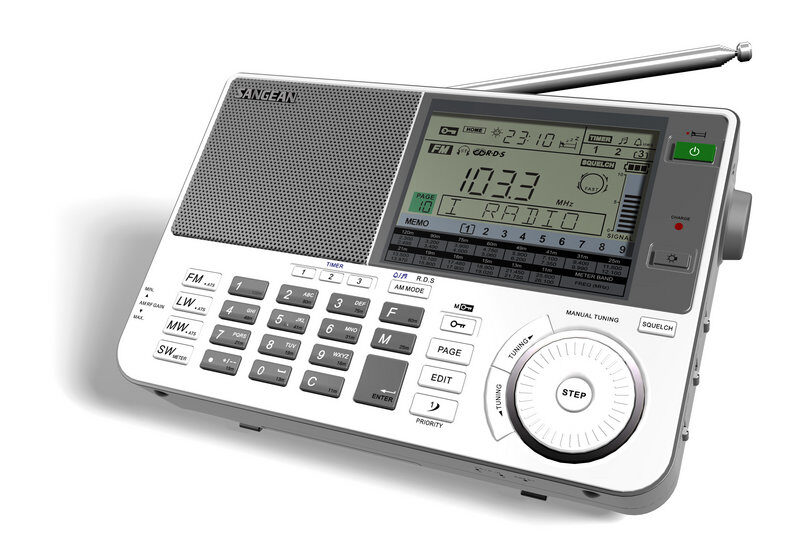

FM-RDS (RBDS) / MW / LW / SW PLL Synthesized Receiver
Features:
- 406 Presets (FM 3 Pages: 27 Presets / LW 1 page: 9 Presets / MW 2 Pages: 18 Presets / SW 39 Pages: 351 Presets) + 1 Priority Preset
- Five Tuning Methods: Direct Frequency Tuning, Auto Scan, Manual Tuning, Memory Recall and Rotary Tuning
- ATS (Auto Tuning System) Auto Scan and Preset Priority Signal Strength in FM / MW / LW Bands
- FM RDS / RBDS with PS, PTY, RT and CT Features
- DSP IF Decoder
- Large LCD Screen with Bright White LED Backlight
- Automatically Searches for Strongest Signal Station within SW Station Pages
- Alarm: Radio or HWS (Humane Wake System) Buzzer
- Built-In 42 World Time & DST Device with 2 Editable City Names
- AM Wide / Narrow filter
- FM Mono / Stereo Selector Switch
- SSB (Single Side Band): USB / LSB 40Hz / Tuning Step
- Alarm: Radio or HWS (Humane Wake System) Buzzer
- Built-In 42 World Time & DST. Device with 2 Editable City Names
- AM Wide / Narrow filter
- FM Mono / Stereo Selector Switch
- SSB (Single Side Band): USB / LSB 40Hz / Tuning Step
- AM RF Gain Control / RF Gain Control
The DSP comes as standard (Digital Signal Processing) with the unit & includes a number of features which can significantly enhance reception through improved interference rejection such as Digital Bandpass Filter (SSB/AM/FM Modes) Provides razor-sharp selectivity for reducing adjacent-frequency interference and for shaping of the incoming station’s audio frequency response.
The alpha-numeric memory system lets you store 406 Presets (FM 3 Pages: 27 Presets / LW 1 page: 9 Presets / MW 2 Pages: 18 Presets / SW 39 Pages: 351 Presets) + 1 Priority Preset. Three Programmable wake timers available, the clock displays even when the radio is tuning and has 42 world city times stored. The new enlarge LCD display also features a new bright white LED (higher brightness display), a signal strength, battery life indicator, AM Wide / Narrow filter, FM Mono / Stereo Selector Switch, SSB (Single Side Band): USB / LSB 40Hz / Tuning Step, AM RF Gain Control / RF Gain Control.
The ATS-909X will also display FM RDS / RBDS with PS, PTY, RT and CT features for station name and clock time in areas where this service is available.
Professional features, professional ergonomics, and professional DSP-based selectivity are yours to enjoy today-and only from Sangean!
Accessories Included: AC Adapter, Carrying Pouch, Earphones, SW Antenna (ANT-60)
TECHNICAL SPECIFICATIONS
Frequency Range:
FM Frequency (MHz) 87.5 – 108 / 76 – 108
LW Frequency (kHz) 153 – 519
AM / MW Frequency (kHz) 520 – 1710
SW Frequency (MHz) 1.711 – 29.999
Meter Bands 120,90,75,60,49,41,31,25,21,19,16,15,13,11
Mode: AM SSB USB / LSB
Dual Conversion
Wide / Narrow
Dimensions: Width 7.9 x Height 5.3 x Depth 1.5 in.
Weight: 1 lb. 9.8 oz
Price: $259.95 USD
AMAZOM.com Price: $220 USD
