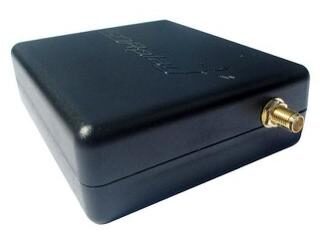

The SDRplay RSP is a powerful wideband full-featured Software Defined Receiver which covers all frequencies from 100kHz up to 2 GHz.
All it needs is a PC (Supported Platforms: Windows, Linux, Mac, Raspberry Pi 2 & Android) along with an appropriate antenna to provide excellent communications receiver functionality. Combined that with the power of readily available SDR receiver software and you are on your way to enjoy all modes of operation while monitoring up to 8MHz of spectrum at a time.
What’s really exciting is that SDRplay offers an open API, allowing developers to create new demodulators or applications around the platform.
Amateur Radio Operators will enjoy all modes of operation for the Ham Bands ranging from experimental LF, through all the HF bands, VHF, UHF and up to the 23cm band.
With the SRDplay RSP general coverage receiver, you can enjoy exploring the rest of the RF spectrum as well!
Robust and strong plastic case
Continuous coverage from 100kHz to 2 GHz
12-bit ADC silicon technology (not another 8-bit dongle!)
Built-in High-Performance front-end filters
Up to 8 MHz bandwidth
Good sensitivity and selectivity
Low noise floor
Simple USB interface (type B socket)
SMA antenna socket
Powers over the USB cable
Ideal for portable operation
No need for an up-converter
Covers all amateur bands from experimental LF through HF, VHF and UHF
Simultaneous entire amateur band monitoring possible
Works with all the popular SDR software (HDSDR, SDR# and SDR-Console)
Compatible with existing open source radio software
ExtIO based plugin available
Compatible with Mirics Radio & TV software
Software upgradeable for future standards
Strong and growing software support network
API provided to allow demodulator or application development
Multiplatform support including Windows, Linux, Mac and Android
Frequency range: 100kHz – 2 GHz
USB 2.0 (high speed) type B socket for signalling and power
SMA RF (female socket)
Intermediate Frequency Modes:
Zero IF, all IF bandwidths
Low IF, IF bandwidths <1.536MHz
