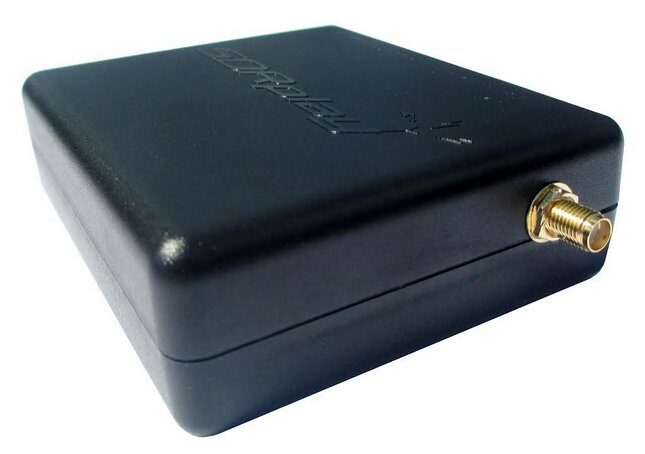

SDPlay-RSP

SDRplay and SDRplay RSP (RSP – Radio Spectrum Processor SDR Receiver).

The SDRplay RSP is a powerful wideband full-featured Software Defined Receiver which covers all frequencies from 100kHz up to 2 GHz.

All it needs is a PC (Supported Platforms: Windows, Linux, Mac, Raspberry Pi 2 & Android) along with an appropriate antenna to provide excellent communications receiver functionality. Combined that with the power of readily available SDR receiver software and you are on your way to enjoy all modes of operation while monitoring up to 8MHz of spectrum at a time.

What’s really exciting is that SDRplay offers an open API, allowing developers to create new demodulators or applications around the platform.

Amateur Radio Operators will enjoy all modes of operation for the Ham Bands ranging from experimental LF, through all the HF bands, VHF, UHF and up to the 23cm band.

With the SRDplay RSP general coverage receiver, you can enjoy exploring the rest of the RF spectrum as well!

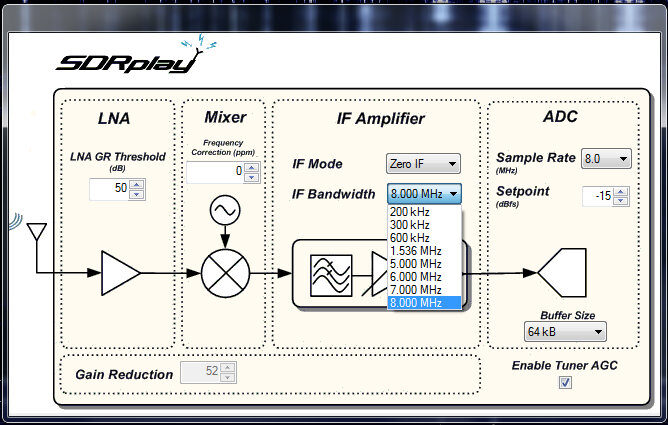

EXT-IO

Key Features:

Robust and strong plastic case
Continuous coverage from 100kHz to 2 GHz
12-bit ADC silicon technology (not another 8-bit dongle!)
Built-in High-Performance front-end filters
Up to 8 MHz bandwidth
Good sensitivity and selectivity
Low noise floor
Simple USB interface (type B socket)
SMA antenna socket
Powers over the USB cable

Key Benefits:

Ideal for portable operation
No need for an up-converter
Covers all amateur bands from experimental LF through HF, VHF and UHF
Simultaneous entire amateur band monitoring possible
Works with all the popular SDR software (HDSDR, SDR# and SDR-Console)
Compatible with existing open source radio software
ExtIO based plugin available
Compatible with Mirics Radio & TV software
Software upgradeable for future standards
Strong and growing software support network
API provided to allow demodulator or application development
Multiplatform support including Windows, Linux, Mac and Android

Specifications:

Frequency range: 100kHz – 2 GHz
Bandwidth: 8MHz

Connectivity:

USB 2.0 (high speed) type B socket for signalling and power
SMA RF (female socket)

Intermediate Frequency Modes:

Zero IF, all IF bandwidths
Low IF, IF bandwidths <1.536MHz

IF Bandwidth supported:

200 kHz
300 kHz
600 kHz
1.536 MHz
5 MHz
6 MHz
7 MHz
8 MHz

Front-end Filtering:

Automatically configured:

12 MHz Low Pass Filter
12 – 30 MHz Band Pass Filter
30 – 60 MHz Band Pass Filter
60 – 120MHz Band Pass Filter
120 – 250 MHz Band Pass Filter
250 – 420 MHz Band Pass Filter
420 – 1000 MHz Band Pass Filter
1000 MHz High Pass Filter

ADC characteristics:

12-bit native ADC
Sample Frequency 2MSPS – 10.66MSPS
10.4 ENOB
60dB SNR
67dB SFDR

The SDRplay RSP is currently compatible with the following third-party SDR applications:

HDSDR (http://www.hdsdr.de/)
SDR# (http://sdrsharp.com/#download)
SDR Console (http://v2.sdr-radio.com/)
SDR-J (http://www.sdr-j.tk/index.html)

Weight: 110g
Size: 95x80x30mm

Full documentation, software and support available via www.sdrplay.com

For more info regarding software available for your RSP, visit www.sdrplay.com/platforms.html

Price: US $149.95
