SKY-221 SDR HF 160 -10m Transceiver With Built-in ADC / DAC For SSB/CW/DIGI/AM/FM 10 Watts. 100mm x 30mm x 160mm
SKY-221/V21 / is designed based on SKY-209 with built in ADC / DAC CM6206.
The original idea was for SDR Transceiver for PSK, SSTV, JT65, JT9, RTTY and other, in my testing about
3 months showed good results and also on CW although CM6206 is 48KHZ but very quiet with
layers compared to the standard built-in sound cards and Inboard laptop computer.
SKY-221 /V21 / need only a USB-2 cable to connect the PC no additional cables except the power supply
and connections between antena. Other conection with PC are only virtual .
SKY-221 /V21 / a 3 jack sockets a front panel :
1.for stereo headphones.
2.for electret microphone with PTT /not used/.
3.for plain keyer or to interface with another computer to work with program in contest
SKY-221 /V21 / AF has its own built-in 1W mono amplifier with speaker.
SKY-221 /V21 / work every program with PowerSDR ,but recommend with IQ
Transmitter power 10W types of SSB andDigital Modes with power supply 13,2V, 7W CW.
PA with MOS RD16HHF1 or RD15HVF1 Mitsubishi
For lovers of QRP licensed radio amateurs!!!
Every HAM has at least one computer in more ….You can use it Now !!!!
SKY-221 handheld radio is almost … occupies less space and consume less energy!!!
Description:
The SDR HF 160-10m Transceiver SKY-221 Synthesizer With Si570 and CAT USB QRP 10W for testing with every PowerSDR.
Transceiver SKY-221 is Built and Tested.
Features:•Size: 100mm*30mm*160mm
•Operating voltage and current : 12.6V…13.2V /Tx 1.6A/Rx 0.25A
•Power on all band minimum 10W out
•AF 1W
•Computer Configuration Pentium IV min 2.4Ghz CPU ,Ram 2GB /or 1.8GHz for Digital modes/
•IF by PowerSDR 10000Hz

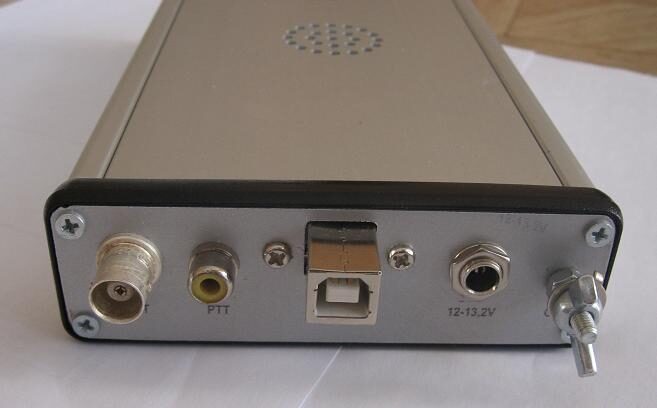

-REAR PANEL-
•Ant Output/Input standard – BNC F
•PTT OUT for PA /logic+/ – RCA
•Power receptacle -positive in the middle
•USB -standard usb2
-FRONT PANEL-
•Knob -ON/OFF- Power
•Knob -Preamplifier- +20db ON/OFF
•Knob -Monitor- ON/OFF
•Knob -FREQ- Push switch ON/OFF -for adjust settings
•Knob -“+”,”-“- Push Botons for adjust settings generator to 1Hz
•LED -ON- Power ON
•LED -PRE- Preamplifier ON
•LED -CAT- indicator blue LED-flashing when CAT is not included and constantly lit when the CAT works
•Knob -AF- for adjust AF Speeker only
•Jack F -KEY- for CW key also for tuning with Automatic Antenna Tuner SKY-102-AT
•Jack F -Mic- for Electret Microphone/with power for microphone/
•Jack F -HEADS- for stereo Headset
•All Relays – NAIS JAPAN
Transceiver SKY-221 is Built and Tested from “DOBRI COMMERCE” Ltd. / LZ2TU /
Kit contains:-SKY-221 Transceiver -1pcs
-Power cable with fuse 3A-1pcs
-USB cable -1pcs
-Manual for SKY-209
-WARANTY
Price: $559 USD + Shiping $30 USD
