Custom programmable – Flexible- Simple for use – Unlimited

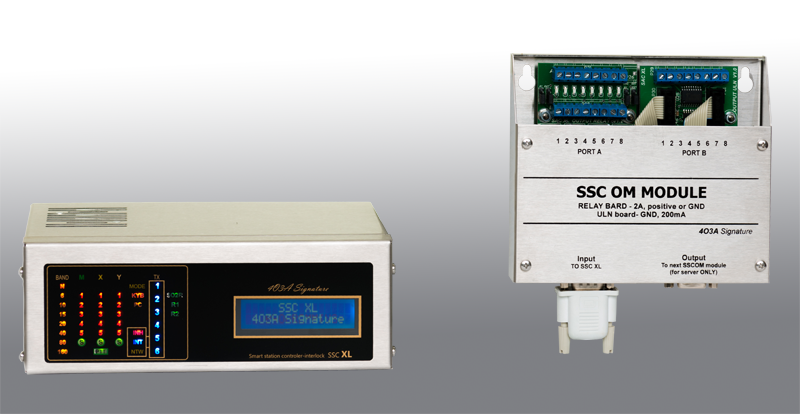

The SSC XL is a comprehensive stand-alone station control unit specifically designed for ease of use, along with unmatched versatility and expandability. If it’s in your shack, the SSC XL can probably switch it!
The SSC XL allows control of:
4-square antenna systems
a number of custom switching and monitoring devices.
The SSC XL can serve as a stand-alone node with its own IP address, allowing it to control your station while you are at a remote location.
Up to 36 SSC XLs in a multi-transceiver station can be monitored using the network Interlock function with the transceiver transmitting displayed on each SSC XL and with transceivers not allowed to transmit at the same time given the rules of any particular contest blocked from doing so. PTT outputs are configurable for either +5V or a closure to ground on transmit. All common transmitter transmit inhibit protocols are supported and PTT outputs can incorporate a selectable delay, if desired, for antenna switch and linear amplifier sequencing.

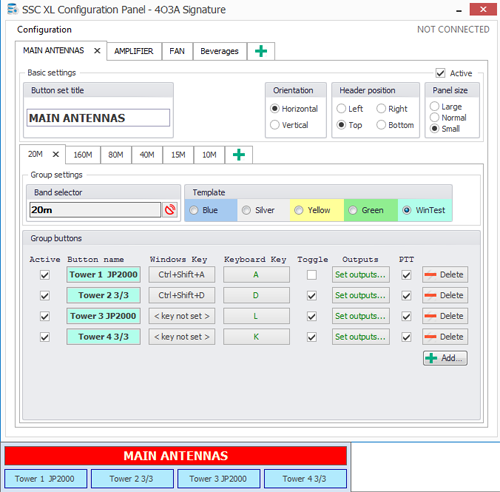

Simple, user friendly configuration panel makes programming of SSC XL very simple.
The SSC XL firmware is designed for easy integration by software designers worldwide, and its upgrade capability ensures you always have the latest features and capabilities on board.
Price: $690 USD
DX-Patrol Converter for OSCAR-100 DX-Patrol Uplink Converter for OSCAR-100 (QO100) Geos. Satellite.
434MHz to 2400MHz Low Cost (~100 EUro) Up convertor with 100mW of RF Power to "QO-100" Satellite.
Source (Link) to DX-Patrol Company
DAIWA CN-901-HP-3 SWR Meter CN-901HP with true peak power readout.
All Daiwa SWR meters can be selected to display average or peak power. The PEP value is found by different charge/discharge constants and therefore is not very...
