micro2R™ is designed for any amateur with two transceivers and any control interface. It is feature rich but easy to install and operate, provides automatic or manual control of headphone audio and transmitter selection, and is compatible with the automatic modes of all of the most popular contest logging programs.

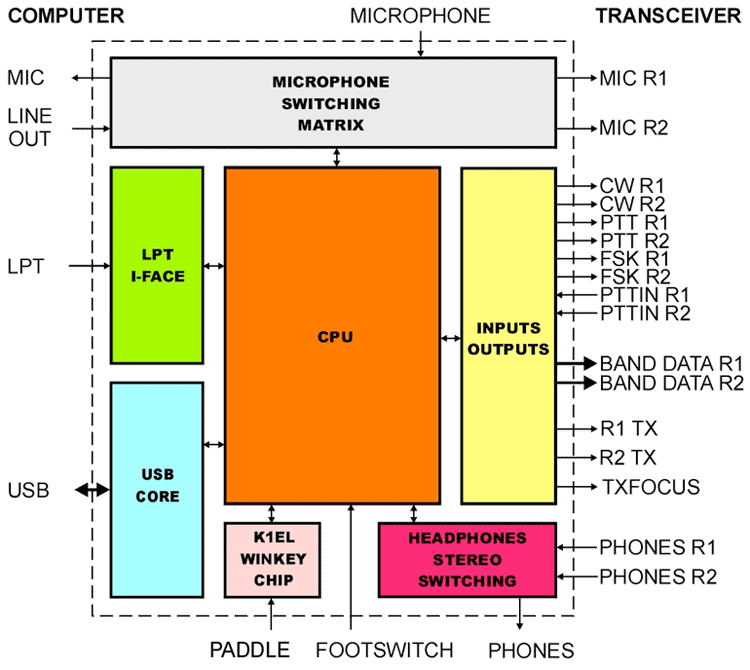

micro2R™ is two radio controller for the single operator (SO2R controller). Install the control/driver software, connect your headphones, paddle, mic, footswitch and connect micro2R™ to your radios: you’re ready to go. The front panel is easy to understand with pushbutton controls for headphone audio and transmitter selection, speed control for the built-in WinKey 2 keyer, separate soundcard drive controls for each transmitter, an easy to use mix level control, and clearly visible LEDs to indicate manual or automatic operation, headphone audio source, and selected transmitter.
Unlike any other commercially available SO2R solution (except MK2R™ and MK2R+™ from microHAM), micro2R™ uses either USB or LPT control, includes a proven WinKey 2 CW keyer, support for either electret or dynamic microphones, a UART compatible FSK port for each radio, and built-in support for the voice keyer capabilities of the most popular contesting software.
advanced (USB) or classic (LPT) control
proven microHAM Control Protocol
“Band Data” or Antenna Relay ports controlled by logger
two UART compatible FSK outputs
single foot switch operation
“selected transmitter” output for station automation
compatible with most standard Windows based programs
optically isolated USB and LPT inputs
compatible with LPT interface (CT, TR, NA)
intelligent keying lockouts for both radios
hardware lockout for ”last one wins” or ”first one wins”
programmable PTT Lead and Lag adjustable in 1ms steps
separately sequenced keying outputs for LNA bypass
separate PTT per transceiver with automatic focus control
support for VOX and CAT T/R switching command
integrated K1EL WinKey2™ with front panel speed control
front panel speed control.
nine (9) memories with auto-numbering
PS/2 keyboard/keypad support for direct CW with type ahead
PS/2 keyboard/keypad support for CW message playback
PS/2 keyboard/keypad CW works without computer connection
front panel headset jacks
selectable electret bias (+8V) on mic tip or ring
wide range preamplifier supports both dynamic and electret mics
microphone switching allows “through the soundcard” or “soundcard override” operation
transceiver PTT input for correct headphone switching in VOX
nine (9) memory software DVK
front panel headphone jack
passive receive audio with selectable transformer isolation
support for second sound card for audio review
front panel control knob for left/right audio ”mix” feature
dedicated controls for ”classic” audio control (R1/BOTH/R2)
support for dual dual BCD band data or antenna relay outputs
integrated chokes and filters for maximum RFI immunity
Metal/Aluminum case, powder coated and silk screened
no time limit firmware/software upgrade on-line
USB: USB 2.0 Full speed, USB 1.1 compatible
Power consumption: USB – less than 100mA Power supply – less than 250mA at 13.8V (max. 16V)
CW: 2 x open collector, max 30V/400mA
PTT: 2 x open collector, max 30V/400mA
PTT IN: 2 x active when closed to ground, max +25VDC only
ACC: TTL levels – 4mA Max.
LPT port: optically isolated, load less than 1 mA at 5V.
FSK: 2 x open collector, max 30V/400mA
FOCUS: open collector, max 30V/400mA – low = R1 selected
Foot Switch: active when closed to ground, max load: 1 mA at 5V
Phones: stereo output for headphones, 32 Ohm nominal
MIC: dynamic/electret selectable – max input 500mV 3dB bandwidth: 200 Hz – 6KHz typical selectable 8V bias – 1mA max, off/tip/ring
SC Out: AC coupled input from soundcard – 32-600 Ohm, 4V p-p max.
SC In: AC coupled output to soundcard mic – 600 Ohm typ, 500mV P-P 3dB bandwidth: 200 Hz – 6KHz typical
Dimensions: W 232mm (9.125″) x H 44mm (1.75″) x D 101mm (4.125″)
Weight: 1.3 kg (1.875 lbs.)
Minimum – 1.6 GHz IBM PC compatible computer with Windows 2000, 512 MB RAM, Sound card, CD-ROM, USB1.1 port, Transceiver (x2), logger or control software (any)
Recommended – 1.6 GHz PC with Windows XP or higher, 1 GB RAM, Sound Card, CD-ROM, USB2.0 port, Transceiver with computer port (x2), CW paddle, PS/2 keypad, logger or control software (any)
Note: Windows 98 (all versions) is not supported.
