VHF/UHF AT-828UV Transceiver

New equipment
1 Comment
Tags: new equipment
Date: 26 Nov 2014

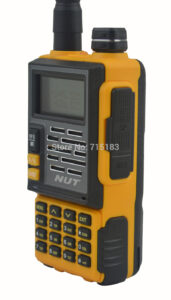

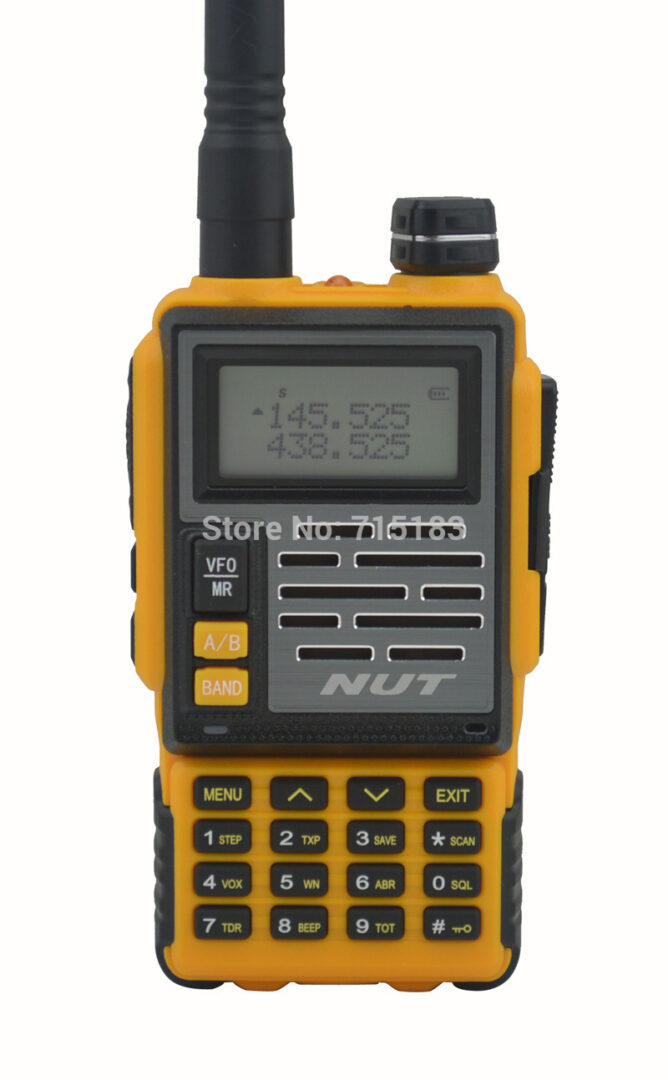

NUT AT-828UV UHF400-480MHz & VHF136-174MHz Dual Band 6W 128CH Portable Two-way Transceiver.

Features:

Frequency Range:136-174 & 400-470MHz
Dual Band, Dual Display, Dual Frequency,Dual Standby
Output Power:6Watt
128 Storage Channels
50 CTCSS and 208 CDCSS
Buit-in Vox Function
1750Hz Brust Tone
FM Radio(65.0MHz-108.0MHz)
LED Flashlight
Larger LCD Display
High/Low RF Power Switchable
25KHz/12.5KHz Switchtable
Emergency Alert
Low Battery Alert
Battery Saver
Time-out Timer
Keypad Lock
Monitor Channel
Channel Step:2.5/5/6.25/10/12.5/25KHz
PC Programming
FM Radio

Specifications:

Dual band, dual display A/B band independent operation
128 groups channels storage Shortcut menu operation mode
VFO & Memory channels scan Emergency Alarm
Tri-color background light selectable 0~9 grades VOX selectable
PTT & ANI ID FM radio and 25 stations storage
1750Hz Brust Tone Time-out Timer
Channel Monitor Battery Saver
Keypad Lock Channel Step: 2.5/5/6.25/10/12.5/25KHz
Low Battery Alert ROGER SET
Emergency Alert 25KHz/12.5KHz Switchable
FM Radio (65.0MHz-108.0MHz) Large LCD Display
LED Flashlight Hight /Low RF Power Switchable
Voice companding 50 CTCSS/ 208DCS coder & tone searching
dual standby PC programmable
Wide/Narrow Band(25kHz/12.5kHz) Transmitter time-out timer(TOT)
High/Low TX power selectable Busy channel lock-out(BCLO)

General:

Frequency Range 65-108MHz(FM Receive only)
136-174MHZ and 400-480MHZ (TX/RX)
Channel No. 128
Frequency Stability ±2.5ppm
Antenna High gain DualBand antenna
Antenna Impedance 50Ω
Operating Voltage DC 7.2V
Mode of operation Simple or semi-duplex
Dimension(W x H x D) 182 x 62.5 x 36.2 mm
Weight 275g(including battery, antenna)
Antenna : SMA -Female
Earpiece / mic type : Kenwood Plug type

Transmitter:

Output power 6W / 1W (Max 5W)
Modulation Mode 16kΦF3E / 11kΦF3E
Maximum deviation 5kHz(Wide) / 2.5kHz(Narrow)
Spurious Radiation 7μW
Adjacent Ch. power ≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics 6dB
Current ≤1.6A(5W)
CTCSS/DCS deviation 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity 8-12mv
Intermediation distortion ≤10%

PACKAGE Contents:

1 x AT-828UV (VHF136-174 & UHF 400-480Mhz)
1 x 7.2V 2500mah Li-ion Battery Pack
1 x Dual Band Antenna
1 x Belt Clip
1 x ENG Manual
1 x Desktop Charger ( 100V ~ 240V ) with Correct Adapter for your Country
1x Handstrap

Price: $76.68 USD

Link (Store)
