TARGETuner Mobile Antenna Management System provides a controller with intelligent automatic controls for the tunable mobile screwdriver antenna, and a Remote RF Module.
Senses RF signal into the antenna
No radio data link required for band selection
Direction switch and motor control of speed and direction
Programmable for stall current sensing
Easy programming and memory capabilities
NEW SWR Alarm: Audible alarm alerts user when measured SWR rises above usable threshold.
NEW TTL Rig Control Serial Port: Allows TARGETuner to read the frequency directly from the radio using CI-V, CAT or serial rig control. The rig control port on the TARGETuner is compatible with these rig control cables: for Icom, for Yaesu.
NEW USB Port: Allows for users to make firmware updates to the unit, as they become available from West Mountain Radio. Firmware updating requires a Windows PC and a micro USB cable.
Digital display for basic transmission frequency and SWR read-out
Manual tuning controls for monitoring antenna performance and adjustments
Continuous sensor monitoring of vehicle movement, antenna icing and many other environmental factors
Convenient and safe Powerpole® connectors for simple installation

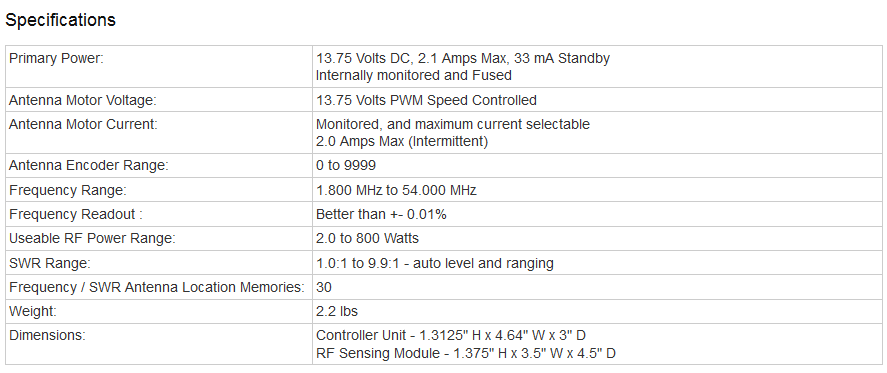

TARGETuner Controller Unit
The control unit is an intelligent, microprocessor based, data and Pulse Width Modulated (PWM) Motor Controller that monitors the transmitter frequency and antenna performance, while managing the antenna motor speed and tuning accordingly.
Auto-detect complete antenna position sensor range to generate the antenna tuning range.
Sample, Store and Recall antenna tuning location data based on Transmitter Frequency and best SWR.
Continuous monitoring of the Forward and Reverse Power Ratio (SWR) of the antenna system and continually adjust the tuning to provide the best antenna efficiency at the transmitter frequency.
A PWM speed control for the antenna motor with Motor Current and Antenna Position Feedback.
Motor control direction relative to transmitter frequency and SWR tuning to automatically seek a minimum SWR reading.
Manual controls also offer the user the ability to adjust the antenna tuning manually, and store new data points for new and favorite frequencies.
The RF Sensing Module
This unit is to be mounted close to the Radio inline with the antenna feed.
Frequency Monitoring and a Prescaler that monitors the frequency of transmitter.
Forward and Reverse RF power detection to monitor antenna performance (SWR data).
Grounding provisions and standard UHF connectors provided.
