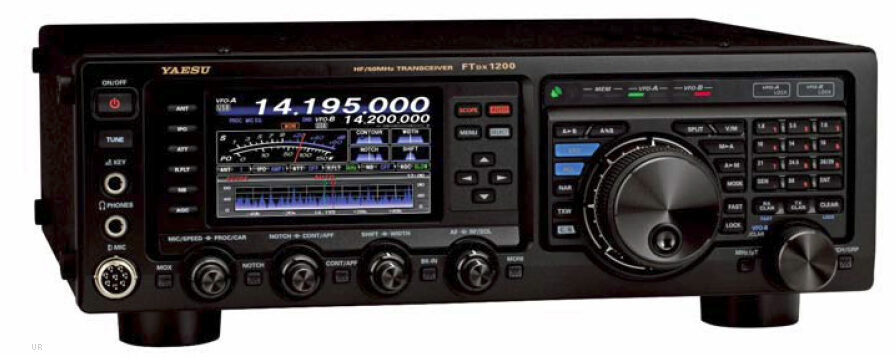

The Yaesu FTDX1200 provides sophisticated operation on 160 to 6 meters with up to 100 Watts on SSB, CW, and FM (25 Watts AM carrier) and a rugged state-of-the-art highly balanced receiver circuit configuration for top performance on today’s crowded bands. It uses 32-bit high speed floating point DSP. Yaesu’s acclaimed superior DSP algorithm is highly effective in weak signal processing and enhancement. The 1st IF frequency is protected by selectable 3 kHz, 6 kHz and 15 kHz roofing filters that effectively attenuate interfering signals. The triple conversion circuit structure allows highly flexible gain distribution at each stage. This enables elimination of unwanted signals through filters at each stage as well as optimized gain distribution. A built-in 4.3-in TFT wide full color High Resolution Display with loads of information provides superior operability and visibility for the FTDX1200 owner. A High Speed Spectrum Scope located just below the LCD, displays the information needed to place them at the right place on the band with the right receiver set-up.
Sophisticated optional accessories offer additional features that make the FT DX 1200 a true high performance platform for all hams no matter what mode they chose to operate. The FFT-1 supports advanced functionality, including the AF-FFT Scope, RTTY/PSK31 Encode/Decode, CW Decode and CW Auto Zero-in. The SCU-17 USB Interface supports CAT, USB Audio in/out, TX control (PTT, Key, Shift) and firmware update functions.
The FTDX1200 is supplied with MH-31B8 hand mic, DC cord, spare fuses and manual.
