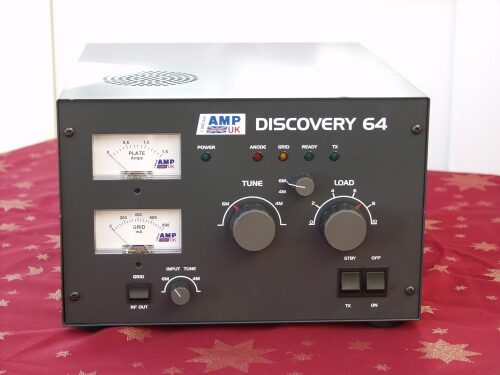

The new version of the 6m/4m Discovery uses a Russian GS35 ceramic triode valve. This rugged triode valve will operate for long periods at an output up to 1500W. The output stage is a Pi/L network with a tuned input circuit.
A heavy duty toroidal transformer and voltage doubler board produce 3600V. The valve is cooled with forced air from a powerful centrifugal fan. The new Discovery features a specially designed control board.
Incorporating soft start and a 3 min start-up timer. There is also protection for Plate over-current, Grid over-current, Over-drive and internal valve flash-over.
Specifications
| Frequency coverage | 50 – 54 MHz and 70 – 75 MHz |
| Output power | 1500W maximum |
| Drive | up to 100W |
| Power requirements | 230V AC at 13A, 50/60Hz |
| DC voltage | 3600V DC |
| Gain | 13dB nominal |
| Valve | single GS35 ceramic triode |
| Cooling | Forced air cooling |
| Harmonics | 3rd harmonic: better than ?45dB |
| Metering | Plate current, Grid current / RF O/P? |
| Protection | Plate over-current, Grid over-current, Over-drive,Internal valve flash-over, soft start & 3 min timer |
| Dimensions | 14in wide x 9.75in high x 17in deep 360mm x 250mm x 30mm |
| Weight | 29kg |
Price: ?1.949.00 (including 20 % tax)
