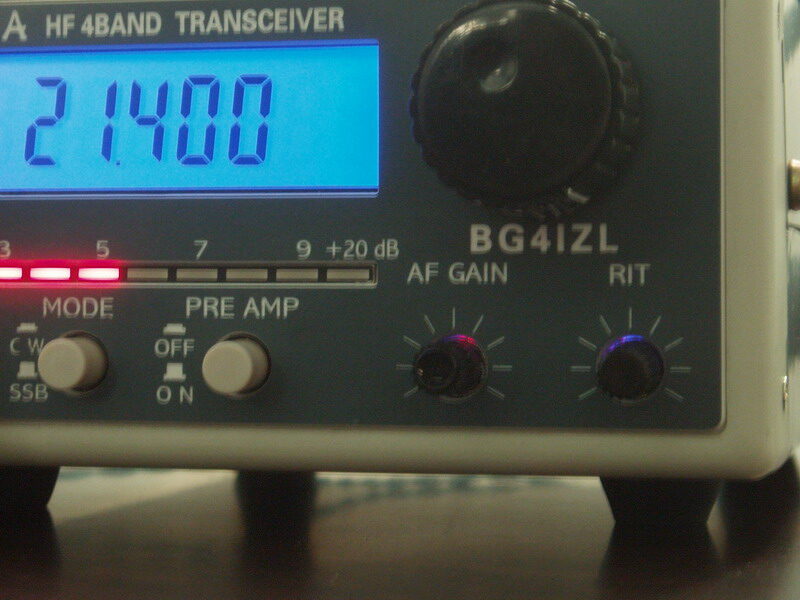

Chinese “Elecraft” style kit

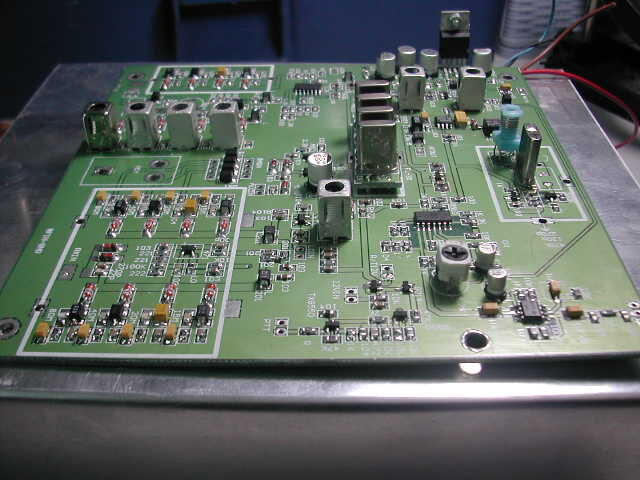

BY-101A is a frequency of. The use of SMD components, double-sided PCB.
Bands : 80 meters, 40 meters, 20 meters, 15 meters,
Mode : SSB (LSB & USB) and CW.

The oscillator uses digital frequency PLL synthesizer controlled by the MCU, the minimum step 1K, 1K within the scope of both is 500Hz adjustable function.
AGC, ALC, power input protection, high-frequency input overload, the main version of the over-current protection (1A self-resetting), power amplifier current limit protection, VSWR protection, power amplifier temperature compensation are standard.

TX Power 15W, by two push-pull C1969 C1971 amp.
BY-101A transceiver used narrow-band filtering.
Body and chassis – 2.0mm thick aluminum, radiator 115X56X15mm..
Also Including the microphone.
