Chinese clone of “ACOM-1011” or 1st of April joke?
Output power is about 800-900Watts (by Phase detection method). Two ceramic “FU-250f” Chinese tubes inside (analog of 4CX250).
The heater voltage of Chinese “FU-250f” tube is 26,5 v AC.
The amplifier is lightweight, compact. Very suitable for mobile / Dxpeditions and home use.

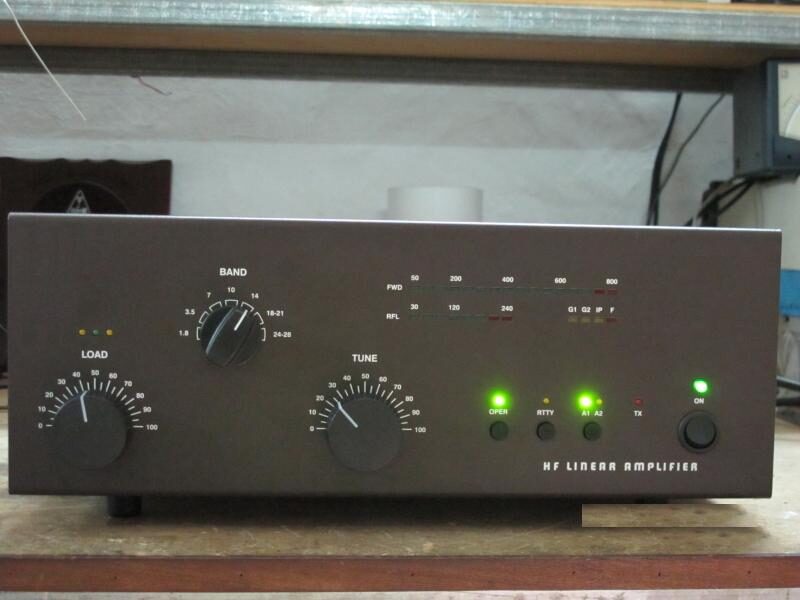

Chinese “FU250” Linear Amplifier (The ACOM’s Logo removed from Left and right side of Front Panel)
ACOM “1011” Liner Amplifier
“FU-250f” Liner Amplifier (Same as “ACOM 1011”)

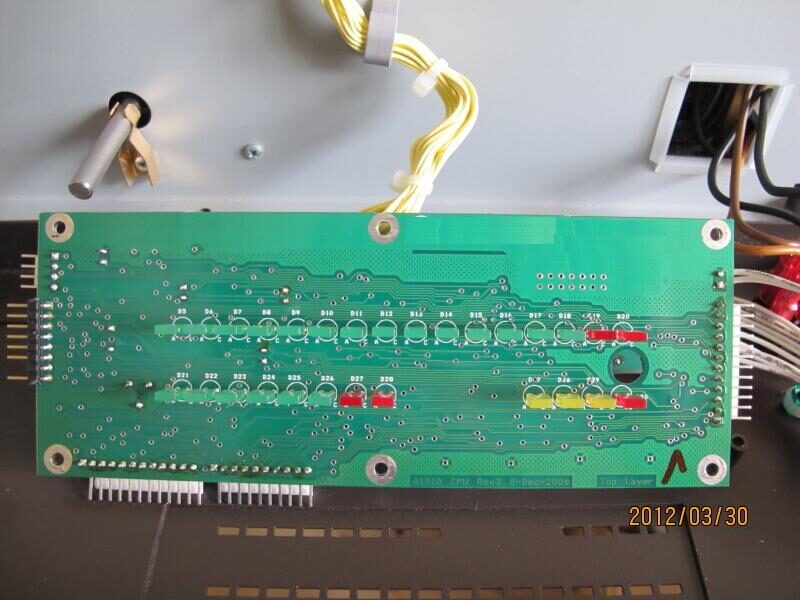

The CPU “FU-250f” control board Unit (from ACOM):
Power Supply “FU-250f” Unit (from ACOM):

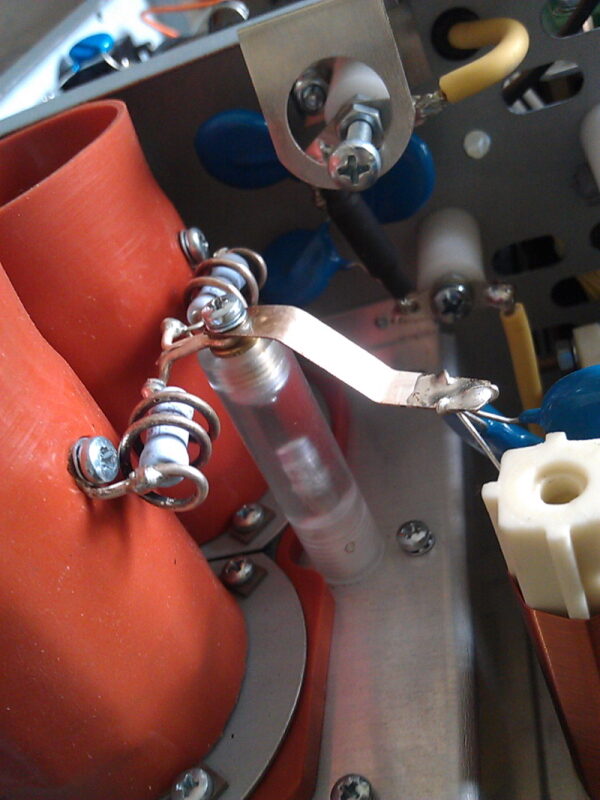

“FU-250f” Plate Cup / HV DC Tube Supply and Protection:

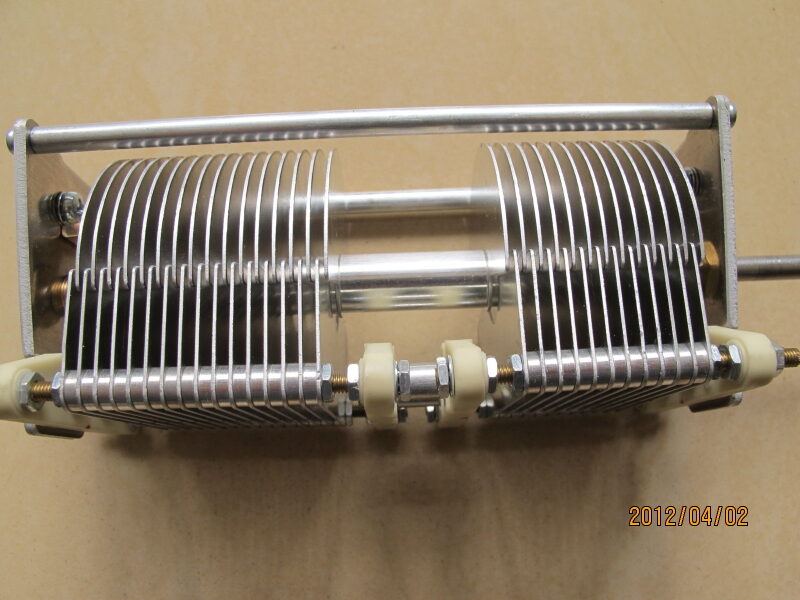

Some “FU-250f” Components & Details:
