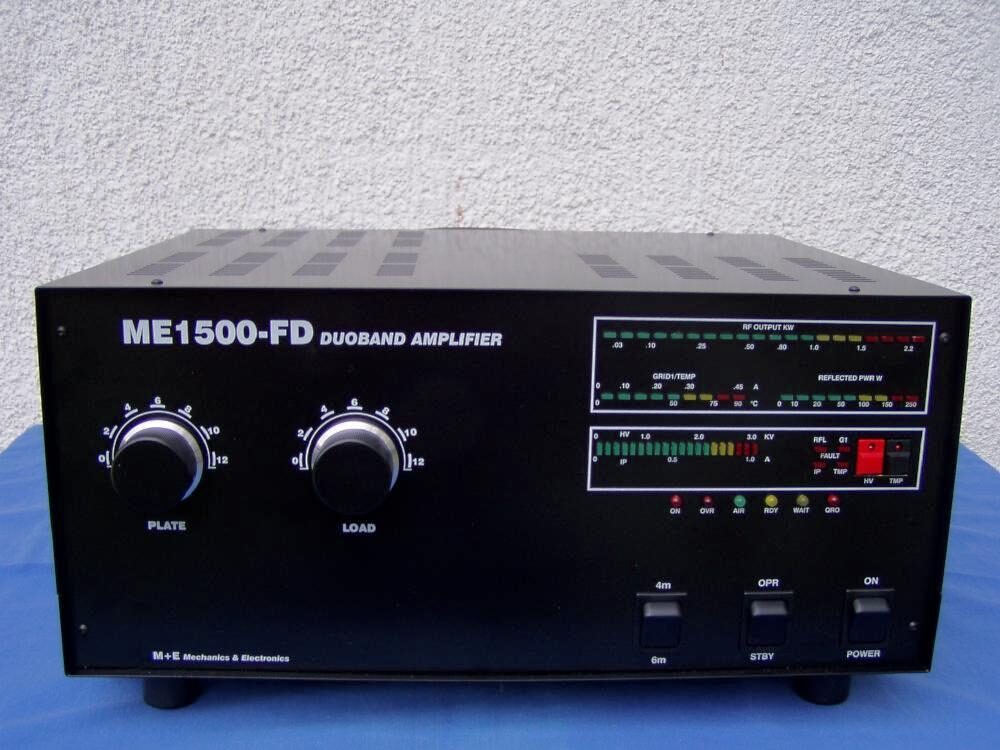

• Frequency Coverage: 50-52MHz and 70-72MHz amateur bands,switchable.
• Power Output: 1400W PEP or 1000W continuous carrier.
• Intermodulation Distortion: Better than 35 dB below rated output.
• Hum and noise: Better than 40 dB below rated output.
• Harmonic Output Suppression: Better than 50 dB below rated output.
• Input and Output Impedances:
– nominal value: 50 Ohm unbalanced,2x UHF (N) type connectors;
– input circuit: tuned, VSWR – Bypass path VSWR < 1.1:2, 4/6m continuously, 100 W maximum; – Output (antenna) impedance matching capability: VSWR up to 2:1 – Tube: GS35B • Protection circuits:Ia>1000mA,Ig1>350mA,TMP>75C,SWR>2
• RF Gain: 12dB typically, frequency response < 1dB (80-100W drive power for
• Built in 3-way PIC controlled sequencer.
• Primary Power: 220-240 V AC, 50-60 Hz, single phase, 1800 VA.
• Complies with CE safety and electromagnetic compatibility requirements.
• FAN :built in 230V/13W AC fan PAPST type 4605,12V/0.15A DC FAN
– optional 120m3 radiall fan is available.
• Size & Weight : WxDxH: 410x340x185mm,~ 29kg
• Operating environments:
– temperature range: 0…+50 degs.Celsius;
– humidity: up to 95% @ +35 degs.Celsius.
– height: up to 3000m above sea level without output deterioration
