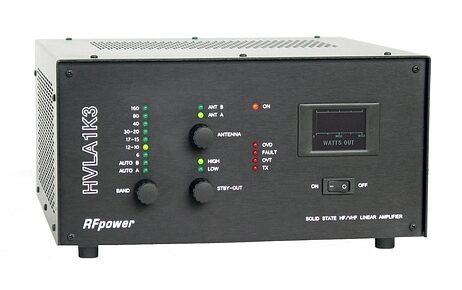

HVLA1K3 AUTOMATIC SOLID STATE 1300 Watts HF LINEAR AMPLIFIER

• Frequency Coverage: 1.8 ~ 54 MHz (only amateur frequencies)
• Operation Modes: All modes
• Drive Power: 40 watts
• Input VSWR (max.): 1.2:1
• Output VSWR (typical): 2:1
• Output Power: 1300 watts
• Harmonics Suppression: HF=better than -40 dB VHF=better than -60 dB
• Third Order IMD: Better than -30 dB @ 1300 watts(PEP)
• Output Filters: Low pass type built with high quality components (high voltage – low ESR mica & porcelain capacitors, high Q coils)
• Output Filters Range: 160 – 80 – 40 – 30/20 – 17/15 – 12/10 – 6 meters
• Band Switching: Automatic for Icom, Yaesu & Elecraft transceiver (manual for Kenwood transceiver)
• IN/OUT Impedance: 50 ohms (unbalanced) SO-239 connectors
• Amplifier Circuitry: Push-pull AB class
• Protections: High antenna VSWR (over 2:1), wrong band, input overdrive, over temperature
• Cooling: Quiet dual-speed forced air cooling
• RX/TX Switching Time: 10 ms maximum
• AC Power Supply: Automatic Voltage selection from 100 to 240 VAC 50/60 Hz by a switching power supply equipped with “Power Factor Corrector” circuit acoording to new European Union Rules on Energetic Efficiency
• Power Rating (max.): 2000 VA
• Dimensions (max.): 4 x 33 x 18 cm – 13,4 x 13 x 7,1 in. (W x D x H)
• Weight: 12 Kg (26,5 lb.)

Link

Price: € 2.350,00 (VAT included)
