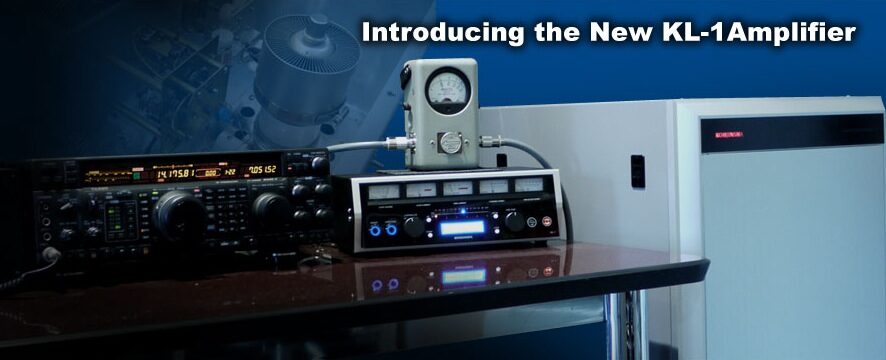

Note: Kojinsha KL-1 is 4KWT (Max Power is 5 KWT) HF Linear Amplifier.
Separated Desk Top Controller:

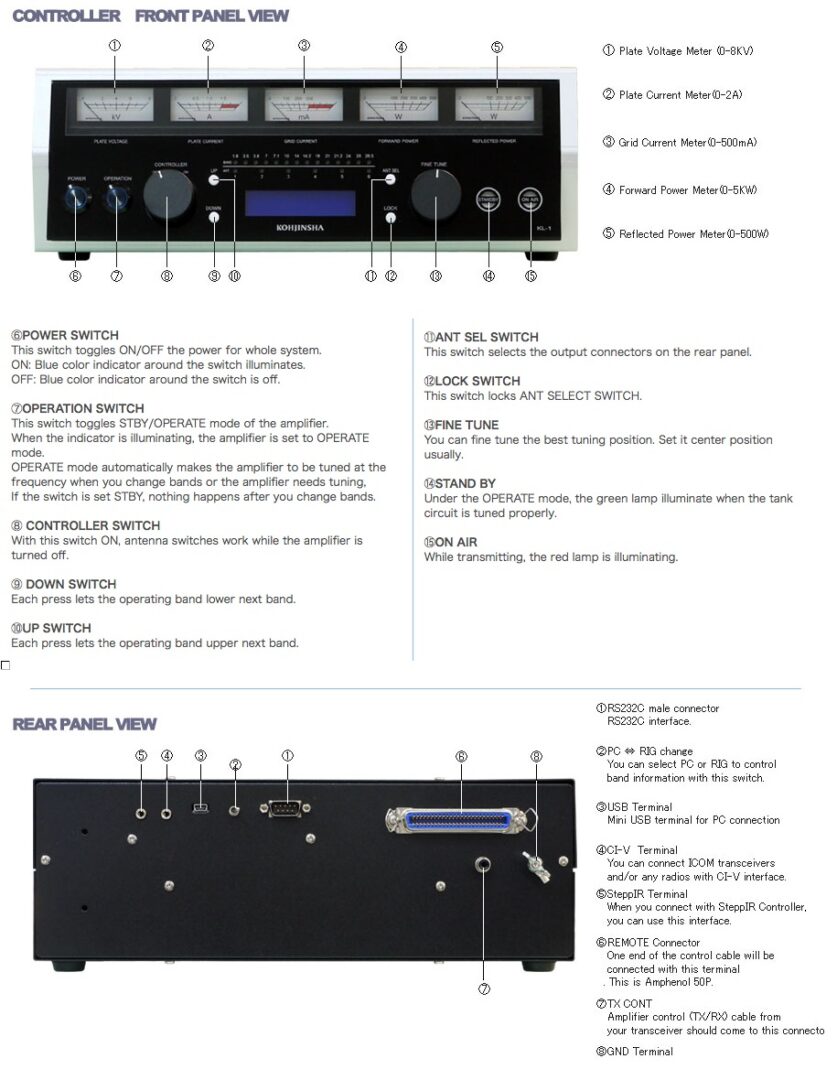

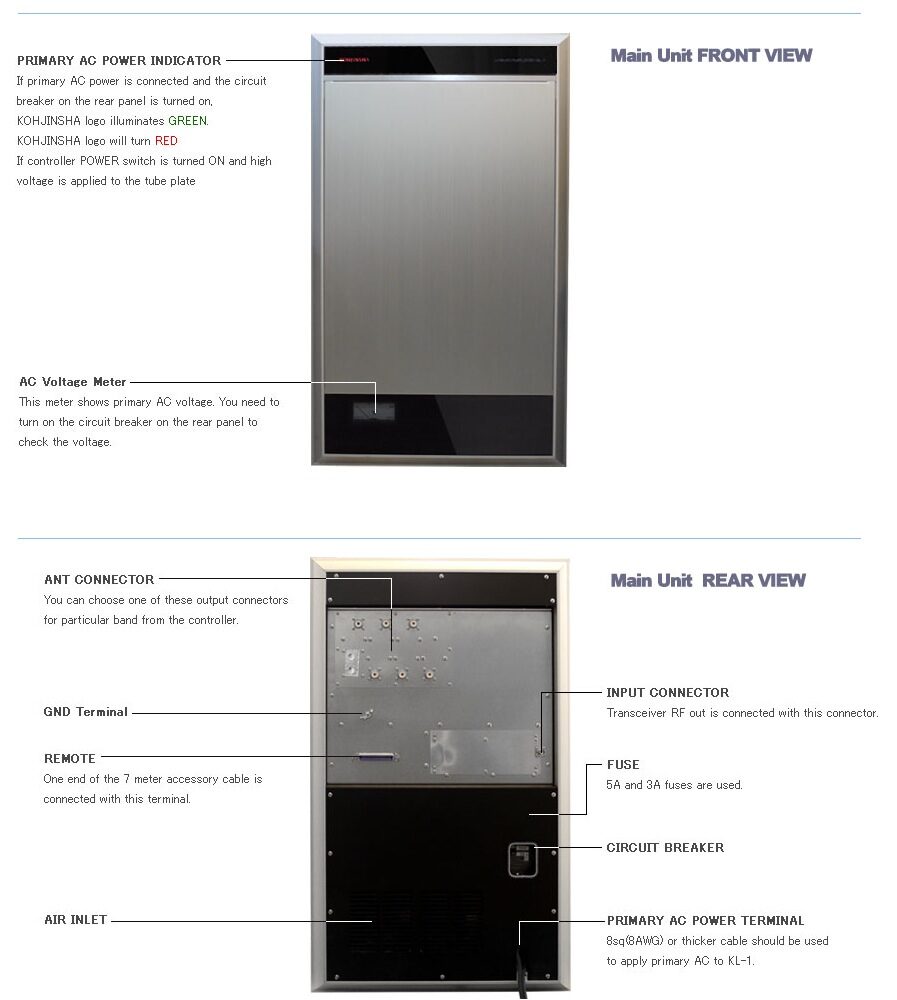

The KL-1 consists of a sophisticated and sturdy Main Unit and a Desk Top Controller with five meters(HV,IP,IG,FWD,and REF) and LCD display shows BAND and ANTENNA CHANNEL so you can monitor the amplifiers working condition at all times. You can be free from heat and noise if you install the Main Unit in another area or room with the control cable.
The length of the standard Remote Control Cable is 7meters(23′).
Preset tuning makes it easy to QSY quickly from one band to another. You can preset up to 14 frequencies in ham bands. After you set channels, QSY is so easy and quick.
You can move up and down between adjacent bands in less than a second. Maximum waiting time to move from 160m to 10m is 30 seconds. KL-1 should help your operation without stress.
High power HF combiner OM10C The high power combiner OM10C is designed for all short wave amateur bands from 1.8 to 29.7 MHz and maximum 10kW PEP output power.
Specification of OM10C:
OM4001A HF Linear Amplifier The OM Power model OM4001A is an automatic power amplifier, designed for use on all short wave amateur bands from 1.8 to 29.7 MHz (including WARC bands) and all modes. It is equipped with a two pieces...
BURST-2000A LDMOS Power Amplifier "BURST-2000A" - Russian LDMOS HF Linear Power Amplifier - 2,2 KWT. 1.8 - 50 MHz. with (CWS) cooling water system.
Video (Russian Language)
Exclusive photos (Copyright...
