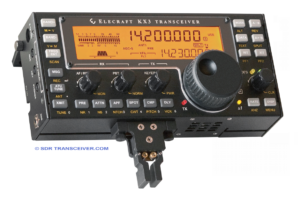

The revolutionary Elecraft KX3 HF transceiver puts the world in the palm of your hand! Despite its small size, it covers all amateur bands from 160-6 meters, operates in all modes, and has DSP-based features usually found only on larger radios.

The KX3’s unique form-factor allows you to operate from anywhere. Fold out the rear tilt-feet for use on a desktop or picnic table, or add our rugged mobile mount bracket for vehicle use. For extreme portability, you can add the internal wide-range ATU, 8-AA cell battery pack with NiMH charger, and adjustable KXPD3 keyer paddle. With a whip antenna, you can even operate hand-held.

In receive mode, current drain can be as low as 150 mA – about one-half to one-third that of competing all-band portables. Transmit efficiency is also excellent, further improving battery life.

  • 160-6 meters, SSB/CW/DATA/AM/FM modes
  • 10 W PEP (100 W with KXPA100 amp)
  • Only 1.5 pounds (0.7 kg)
  • Current drain as low as 150 mA

Click to enlarge

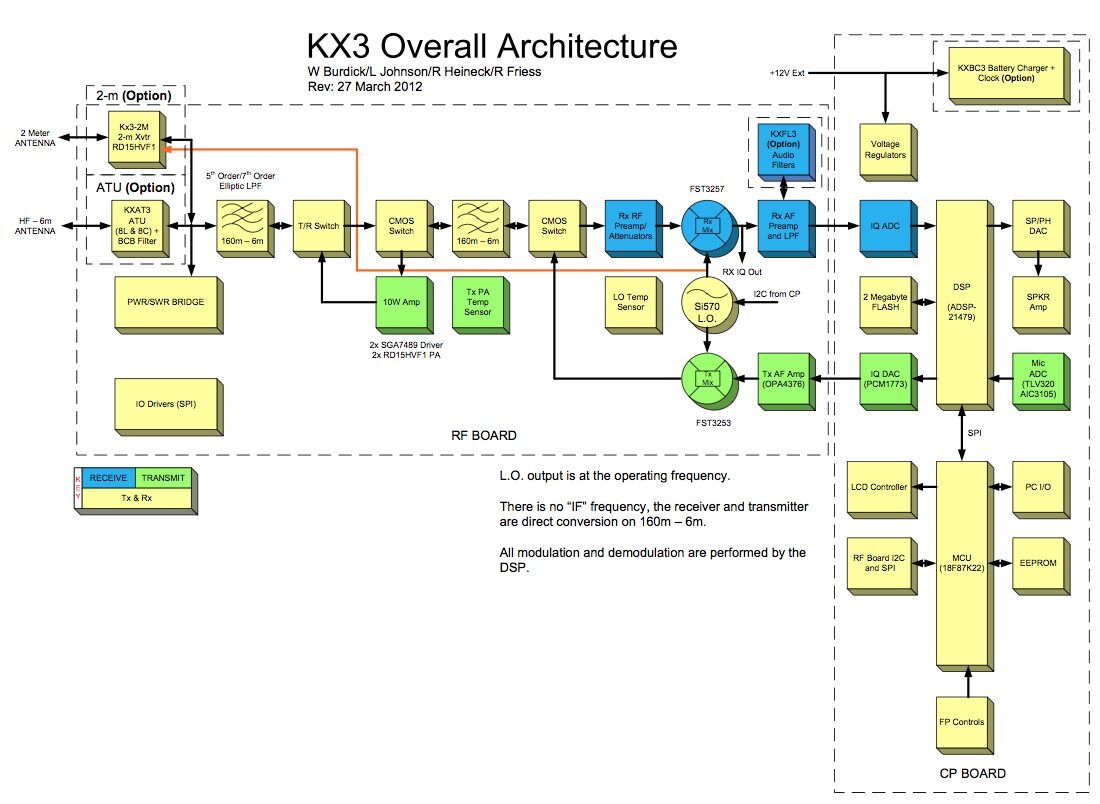

KX3 Manual Block Diagram (PDF file)
