The high power combiner OM10C is designed for all short wave amateur bands from 1.8 to 29.7 MHz and maximum 10kW PEP output power.
Frequency coverage: 1.8 – 29.7 MHz continuous
Power rating: 10 kW PEP or continuous carrier into a matched load (VSWR below 1.2:1). Reduce the output at increased VSWR, linearly down to 5 kW at VSWR up to 2:1

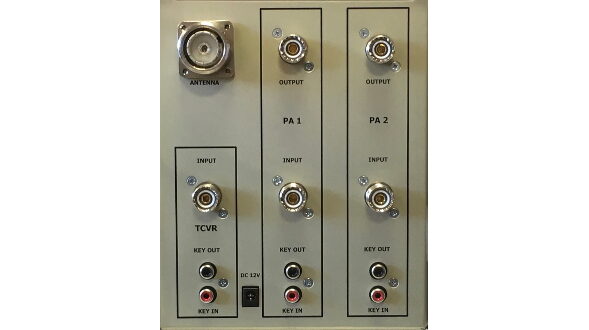

Input impedance: 50 Ohm unbalanced, input UHF SO239 connector
SWR: Less than 1,2 : 1 across band, input VSWR with 50 Ohm loads at the two splitter outputs: less than 1,2:1, 1,8-30MHz continuously (no tunings, no switching)
Output impedance: 50 Ohm unbalanced, output 7/16“ connector
Insertion loss: very low insertions loss, less than 0,3 dB

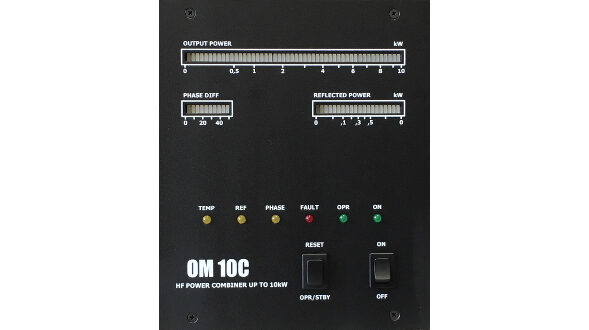

Bar graph indications: – Output power in PEP
– Phase difference
– Reflected power in kW
LED indicators: – ON status
– OPR (operate)
– FAULT (faults indicator)
– Reflected Power
Mechanical parameters: 65mm x 200mm x 350mm (width x height x depth)
Weight: 8.1 kg
