The TEN-TEC Rebel model 506 transceiver is designed with the purpose of providing Ham Radio operators a platform for developing and writing code using the open-source Arduino programming environment. It is a factory built CW QRP radio with a Chip Kit Uno 32 Arduino compatible processing unit that holds the operating program. The radio is provided with programming for basic operating functions that allow it to be used immediately as a basic QRP transceiver. Additional operating functions can be programmed by the user, either by writing the code or copying/adapting code developed by members of a growing number of Arduino special interest groups. It is this sharing of programming routines and ideas for functionality that is the heart of the Arduino open-source concept.
Basic features include a 40 & 20 meter QRP transceiver with internal jumpers to change bands. Full band coverage on both bands. Typical power output will run 4-5 watts with 13.5 VDC. A drift free operation is achieved through DDS synthesizer technology. CW sidetone through headphones. Three filter bandwidth choices and three tuning rate adjustments included with the stock program.

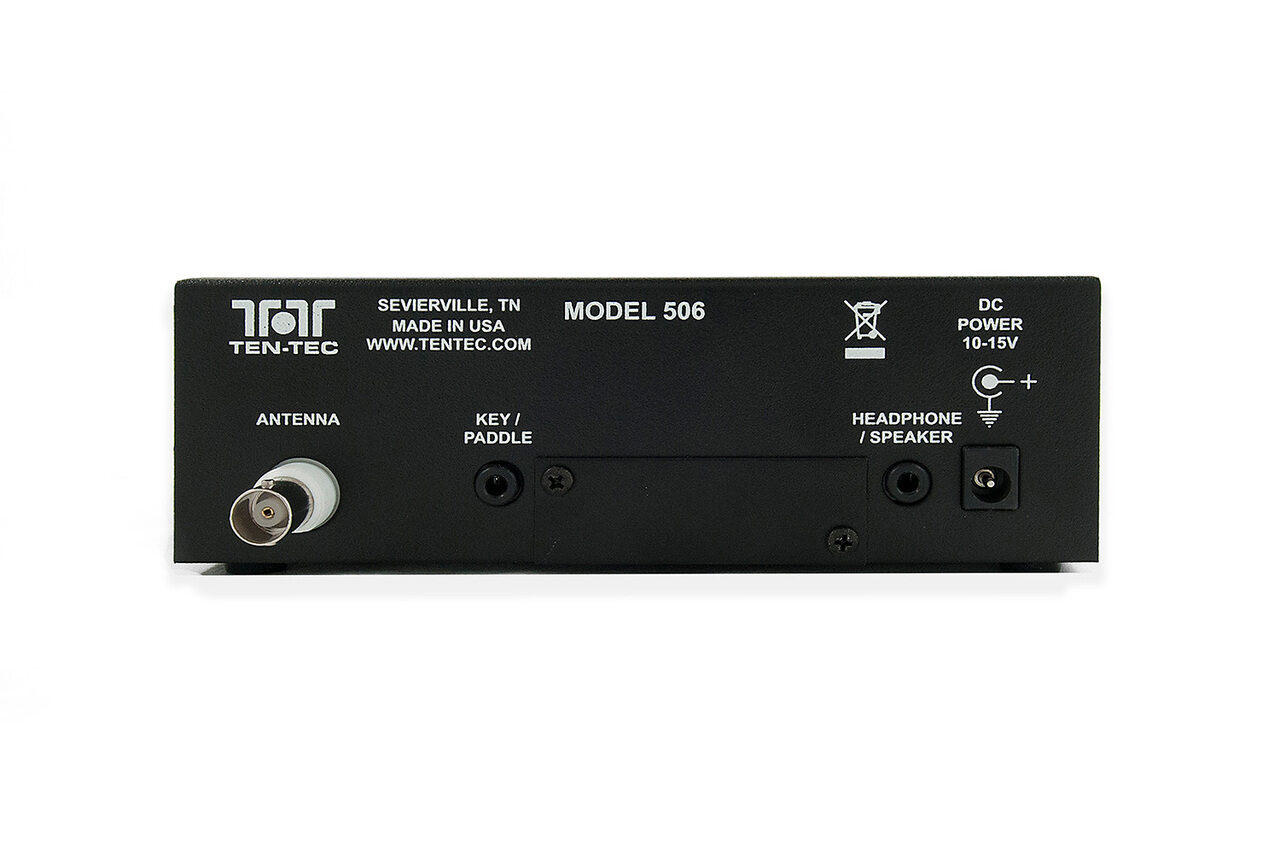

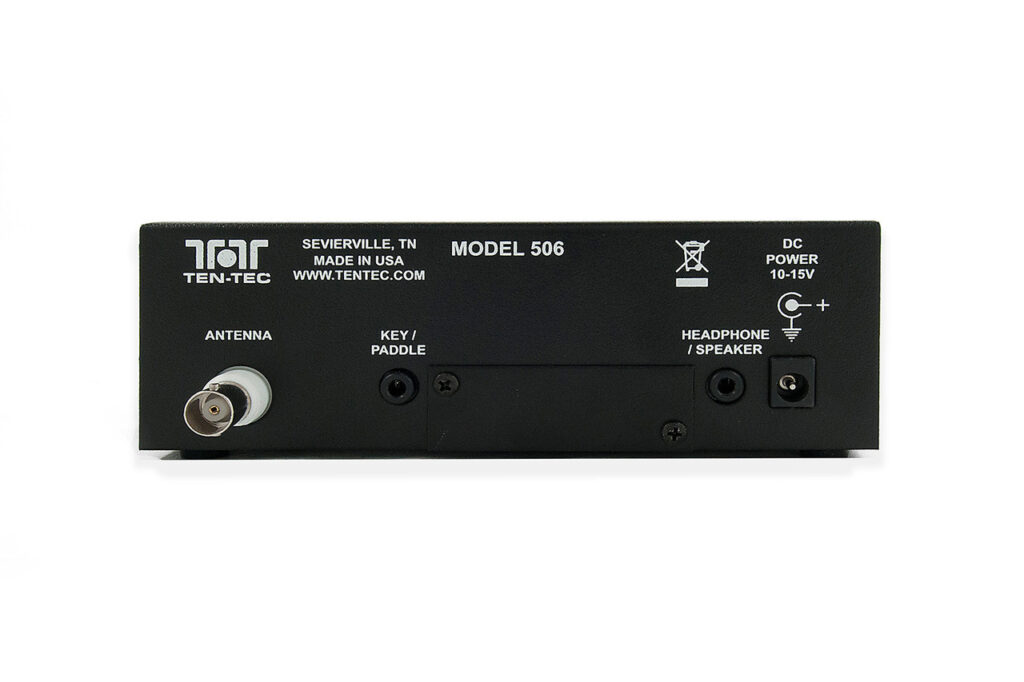

Key Jack: 1/8″ Stereo
Power Connector: 2.1 mm coaxial
RF Output Connector: BNC Female
Headphone/Speaker: 1/8″ Stereo
Frequency Range: 7.000-7.300 MHz
Antenna Impedance: 50 Ohms
DC Power Requirements: 10-15 VDC
Operating Temperature: 0-50 deg. C
Dimensions (H x W x D): 2.0″ x 6.0″ x 4.0″
Weight: 1.33 lbs
Construction: Painted steel enclosure
RF Power Output: Approximately 5 watts at 13.5 VDC
