Wouxun.US “X108” QRP HF Transceiver Kit 9 Bands – AM – SSB – CW (1 – 20 watts RF Power)

tr

X108sr

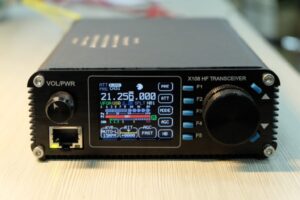

X108sf

X108 is the X1 one series. It is a single-conversion shortwave transceiver. In strict accordance with standard industrial design, design optimization transceiver channels, improve the overall receiver dynamic range and SNR; To enhance SSB and CW transceiver performance, specially customized military-grade crystals, crystal filters for the production of IF. X108 machine  configured 2.4k and 500Hz for SSB , CW filter, the filter performance is excellent, comparable merchandise machine crystal filters to ensure excellent frequency characteristics of the machine.

In addition, the machine is also equipped with AGC , S meter, power meter standing wave, NB (module) function, the operator can meet their daily needs. RF transmit channels using imported MOS tube, the machine APC circuit to ensure the machine is kept constant RF output power level of each band, and also according to the actual needs, adjust the output power level, and have a high VSWR protection. Overall performance indicators to meet the national standard, FCC (or CE ) certification requirements.

SPECIFICATIONS:

  • 9 HF Bands (160-80-40-30-20-17-15-12-10m)
  • SSB ( J3E )
  • CW ( A1A )
  • AM ( A3E )
    Frequency Stability: 1.0 ppm @ -10 ~ +60 (standard)
  • 0.5 ppm @ -20 ~ +75 ( military regulations, optional)
  • Receiver sensitivity: . 0 2 uV

Optional:

  • SSB 2.4kHz (-6dB)
  • CW 0.5kHz (-6dB)
  • Dynamic Range: 95dB
  • RF Power Output: 20W ;
  • Spurious rejection: ≥ 45dBc
  • Carrier suppression: ≥ 45dBc
  • Antenna Port Impedance: 50 Omega
  • Operating voltage: 12.5V ~ 14.5V DC ;

Current:

  • Receive 0. 75 A ( Max )
  • Transmitter 7A ( Max )
  • With multifunction digital microphone in hand, can achieve full function control, such as digital set frequency operation.
  • Equipped with a USB port for easy connection to PC end, realize software control;
  • 32 channel storage.
  • RIT fine-tuning;
  • Front panel to protect the handle (optional);
  • Dimension: 120 * 45 * 180 ( mm )

RECEIVER CHARACTERISTICS:

  • Low noise, single-conversion superheterodyne receiver;
  • Double-balanced diode mixer, providing excellent dynamic range;
  • Receiver sensitivity: . 0 2 uV (preamp open);
  • Narrow-band double-tuned band-pass filter, to achieve coverage of all amateur bands ( WARC
  • band);
  • Xiegu X108 QRP Transceiver
  • http://radioaficion.com/cms/xiegu-x108-qrp-transceiver/[2014-06-24 12:15:27]
  • 6 emission in low-pass filter, the filter function to provide excellent performance;
  • IF channel AGC ( AGC ), providing a constant in the amplifier gain;
  • Preamplifier and switchable attenuator;
  • Excellent performance of narrowband IF crystal filter shape factor of up to 1.7 ;
  • Multi VFO mode , can vary the frequency of work;
  • Provide S meter, power / SWR meter display;
  • Optional NB modules;
  • Optional front panel knob;

TRANSMITTER CHARACTERISTICS:

  • Power adjustable, from 1W ~ 20W ;
  • Dedicated RF power tube, superior performance;
  • High VSWR protection, durable, safe and reliable;
  • Stray radiation rejection: ≥ 40dBc
  • Standard CW amplitude newspaper;
  • Automatic key rate adjustable;

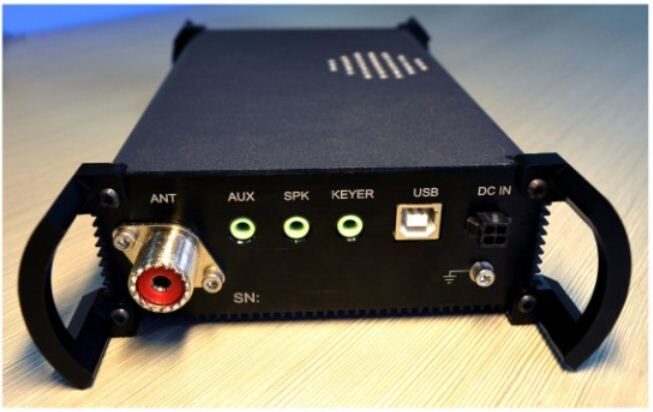

tr2

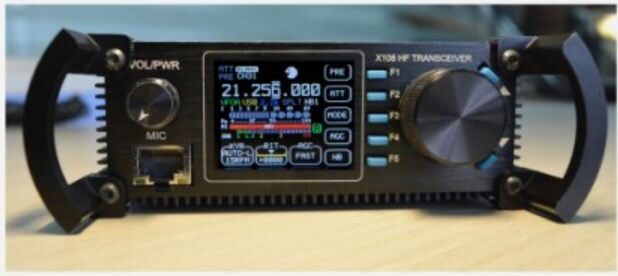

tr1

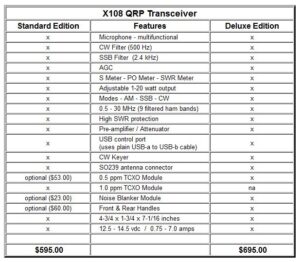

tabs1

Factory delivery to US, late July 2014
