The XPA20 is intended as a companion linear amplifier for the X1M HF QRP transceiver, for those who would like a little more oomph than the X1M’s 5 Watt output. It is rated at 20 Watts maximum output for 5 Watts input and is suitable for both CW and SSB modes.

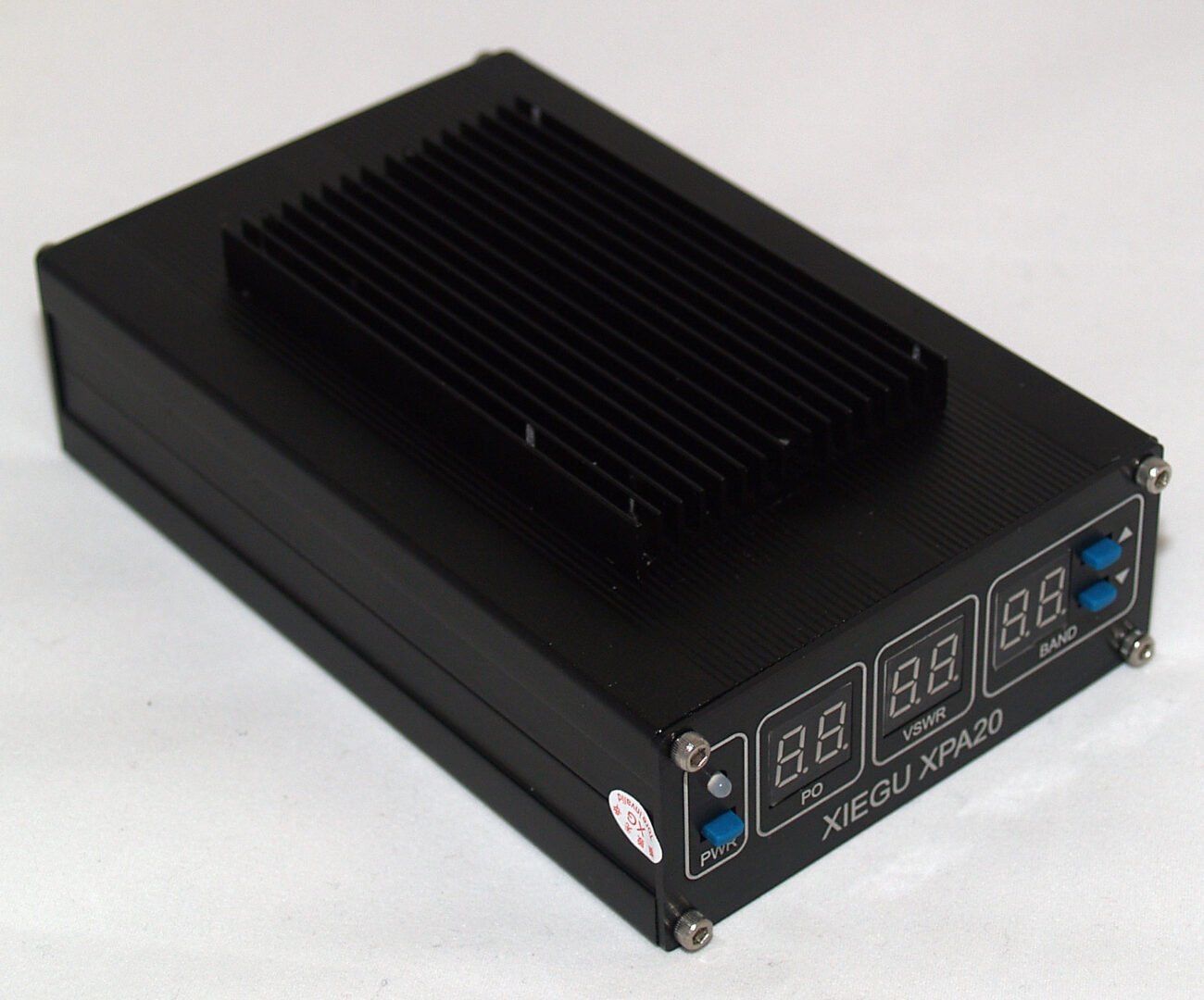

XPA20.3

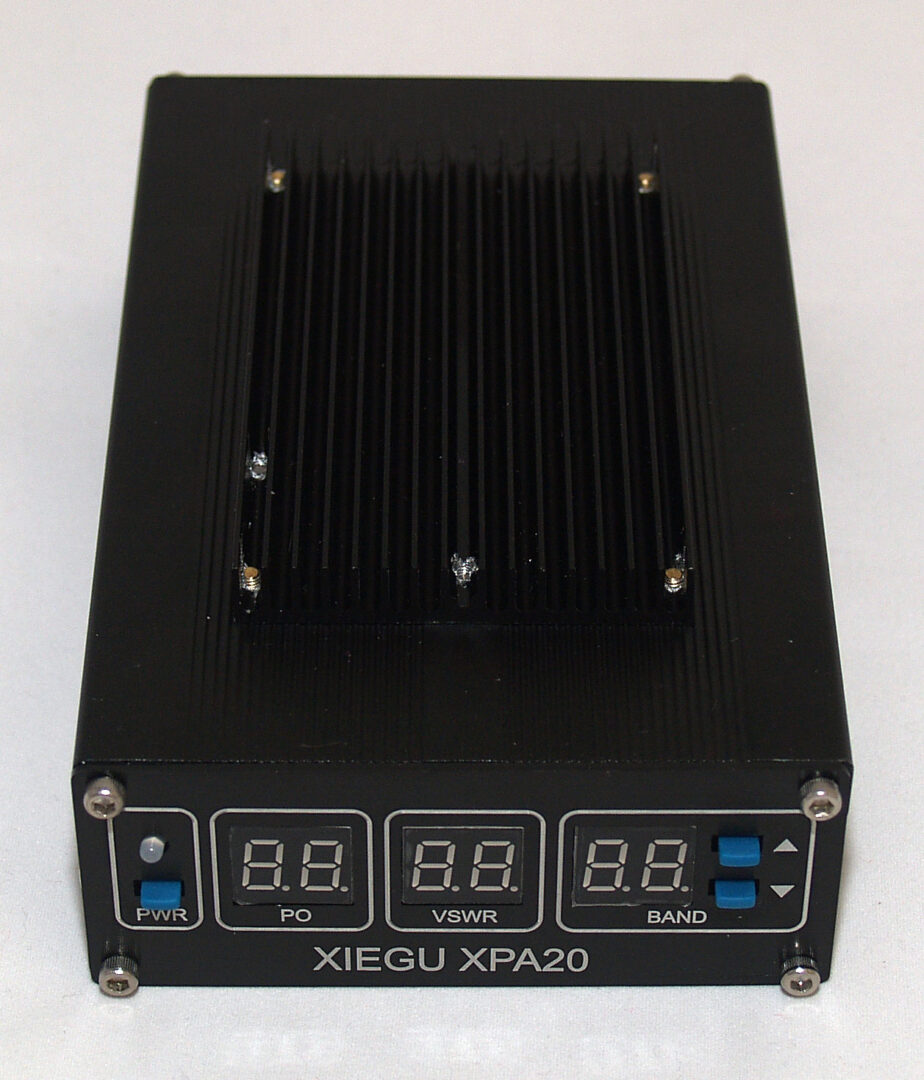

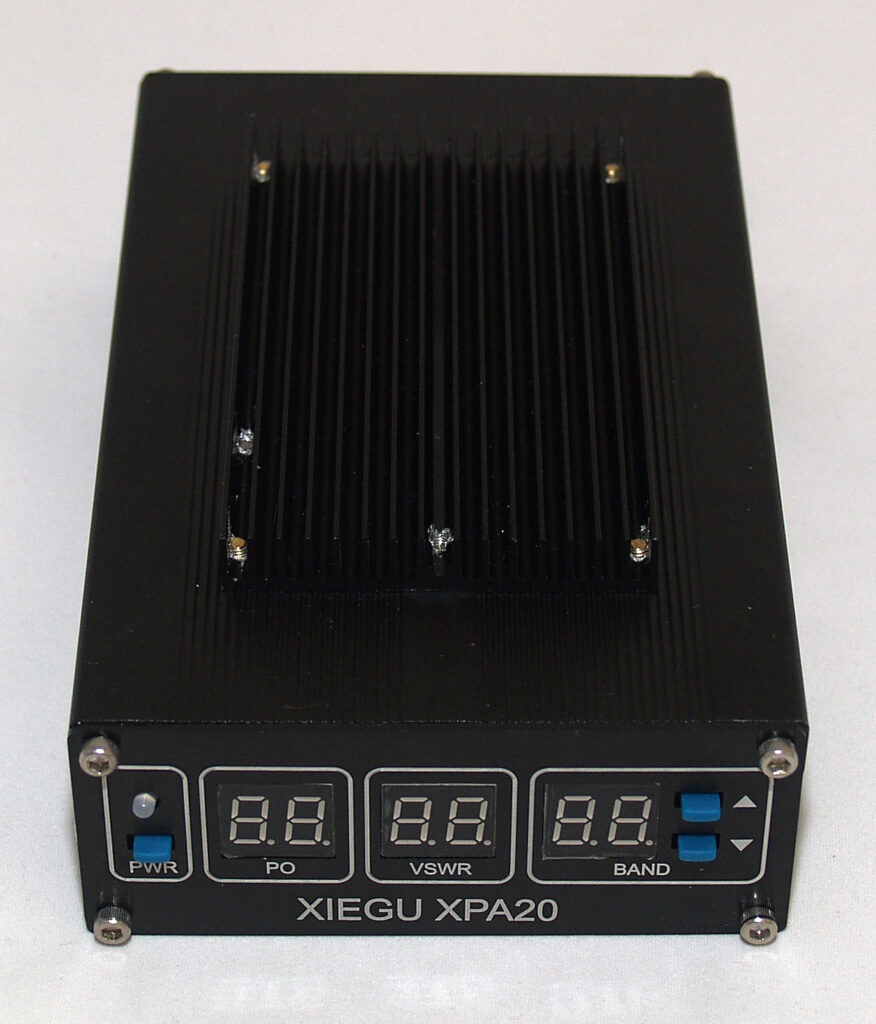

XPA20.1

FEATURES:

  • Switchable CW/SSB mode circuit
  • Six selectable low pass filter settings
  • Selectable time delay
  • BNC Female input & antenna connectors

SPECIFICATIONS:

  • RF power output (max): 20 W for 5 W input
  • Low pass filter settings:

2.0 MHz
4.0 MHz
7.5 MHz
15.0 MHz
22.0 MHz
30.0 MHz

  • Time delay (selectable): 100 ms to 1000 ms
  • Transmission modes: SSB (A3J), CW (A1)
  • Supply voltage (min/max): 12.5/14.0
  • Current draw (max): 7.2 A
  • Dimensions: 97 x 40 x 155 mm
  • Weight: 550 g

Price: $245 USD
