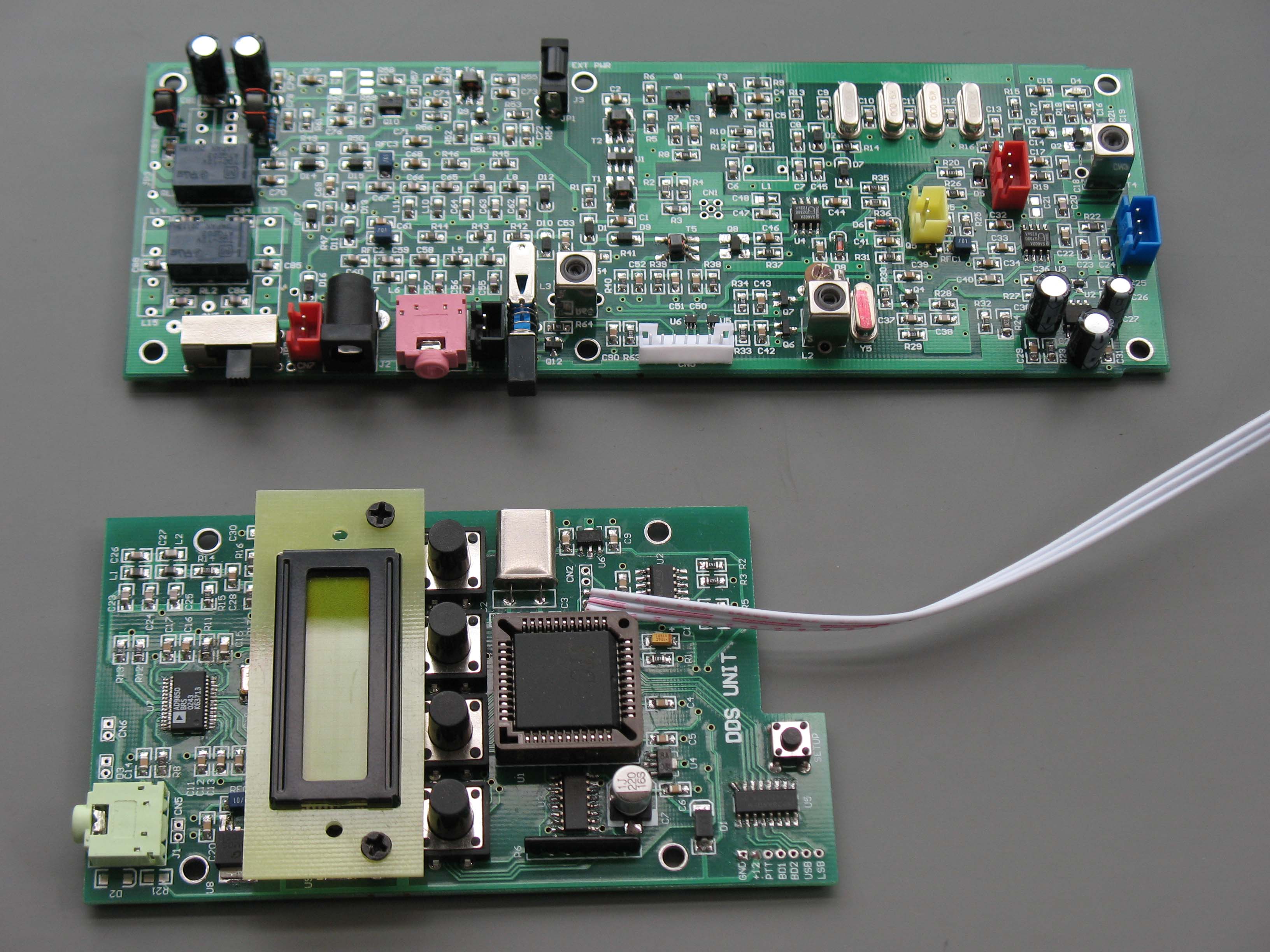

Photo by Youkits
Photo by Youkits

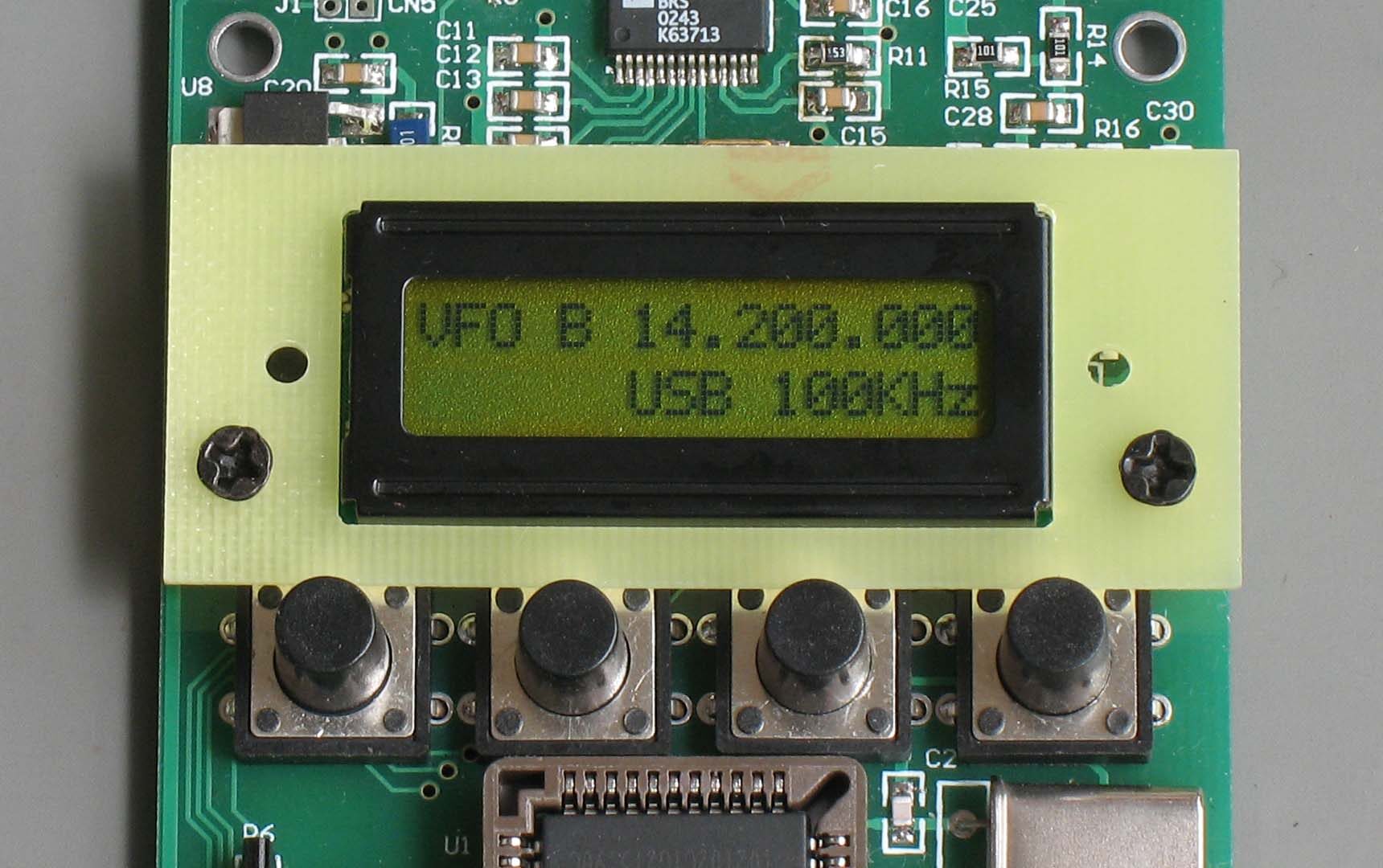

- DDS controlled, Minature LCD display with frequency
- Power: 5W output
- Kit A TX: 5-15MHz, covering 60m, 40m, 30m, 20m band RX:3-18MHz
- Kit B TX: 18-30MHz covering 17m,15m,12m,10m band RX:14-30MHz
- 1Hz, 10Hz, 100Hz, 1KHz, 10KHz, 100KHz tuning rate available
- Dual VFO with 40 memories
- Memory transfer to VFO
- One tuning knob plus 4 keys to realize all functions such as Step, Mode, A/B, Memory/VFO, Memory to VFO transfer, etc.
- Fully assembled, kit available
- Size is much smaller than our TJ2A with space to accommodate 18650 battery pack.
Kit price: $269 SMD parts all finished.
This kit is including everything you need to finish this transceiver, also enclosure, built in microphone.
Assembled unit price is $329
Shipment will be started in beginning of April.
Kit version Pre-order price is $229 till end of Mar.
