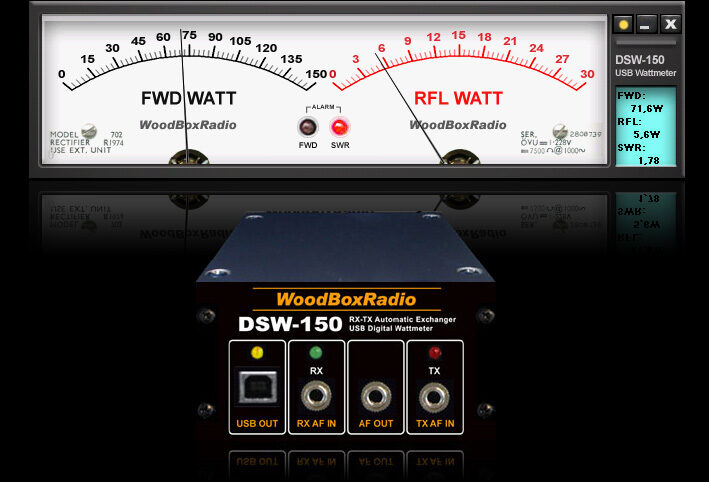

DSW-150 is a automatic T/R switch senses transmitted RF (as SwitchBox) and switches your antenna from receive to transmit using a relay. It shorts your receiver antenna input to ground to protect your receiver. Instead of using RF sense to switch the antenna, a control line input lets your key/keyer or PTT line switch the antenna. Works on all modes — CW, AM, SSB, FM, and digital modes.
TECHNICAL SPECIFICATIONS:
? Impedance: 50?
? Frequency range: DC -160MHz
? Maximum TX power: 150W
? RF sense threshold:
? ON time < 20ms
? Release time: < 190ms
? Insertion loss: < 0.3dB @ 144MHz (0.2dB typical)
? RX isolation: > 38dB @ 144MHz (40dB typical)
? Gas discharge protection
? Power supply: 13.8V DC 200m
Documentation:
Manual (pdf file)
Connections (pdf file)
Price: 199 EURO
