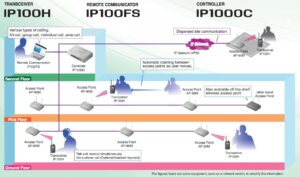

The IP100H transceiver transmits voice and preprogrammed text messages to the IP1000C controller through the wireless LAN access points deployed in the IP network.The contr oller redirects traffic to the specified units.The IP100FS remote communicator can create a virtual radio and simple dispatch station on a Windows based PC. The
IP100FS can obtain position information (based on using access points) and status information of each transceiver.
License-free wireless LAN transceiver using IEEE 802.11 (a/b/g/n) standards
Off-the-shelf wireless LAN access point can be used in the communication system and can communicate at the same time
Users can roam among deployed access points
Dispersed sites can be connected over an IP network (VPN)
Up to 100 users can be loaded on a system and all users can communicate at the same time
WPA-PSK or WPA2-PSK encryption protects your conversation security
The IP100FS remote communicator shows user position information based on access point information
Individual, Group conference call, All call, Area call, Priority call
Full-duplex communication: Talk and receive simultaneously like a phone call (Optional headset required for IP100H)
Mixing function: Receives multiple users voice with mixed audio
Press to talk operation like a conventional transceiver
Unique Area call function can call any user who is accessing the specified access point
Remote stun, kill, revive and monitor function (Transmit from IP100FS only)
Status call and short data message with vibration alert
Auto provisioning function helps easy transceiver configuration
IP Phone and analogue transceiver interconnection with VE-PG3
IPX7 waterproof construction (IP100H only)
Click pic to enlarge

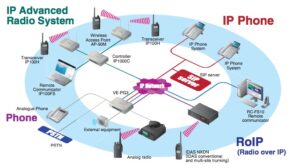

IP Phone and Transceiver Interconnection
With VE-PG3 RoIP gateway, the IP advanced radio system can interconnect with an IP phone, analog transceiver and IDAS™ NXDN™ digital transceiver.
