Newest and most powerful control device for antennas from Switzerland.
With a 300 MHz CPU and up to 128 MB memory provides SAMSplus maximum functionality and flexibility for all possible antenna adjustment. By the way – SAMS stands for Swiss Antenna Matching System and thus the highest technical value, easy operation and high quality.
The operation is done on high-quality user-friendly function keys in Menutechnik. A convenient LCD color graphics display opens to the user in an ergonomically advantageous manner, the whole broad range of functions.
SAMSplus in first time offers the possibility for two transceivers and up to four antennas to be connected and to select arbitrarily. Together with four other additional functions which can be used as desired almost unlimited range of possibilities arising from the connection and adaptation of antennas of any kind.
The unique design allows SAMSplus function to store the setting parameters of up to 4 antennas at any arbitrary frequency ranges and scan.
All settings are accessible as parameters very easily using the control keyboard, the display provides an instructive when needed to prompt help texts and situation. Extensive control and diagnostic capabilities allow insight into all relevant business processes and thus contribute to a possible safe operation.
Controller for antenna matching networks of all kinds
Durable powder-coated stainless steel case, elegant device design, dimensions approximately 242 x 100 x 290mm.
Operating over 14 ergonomically arranged buttons, menu buttons as part of acting.

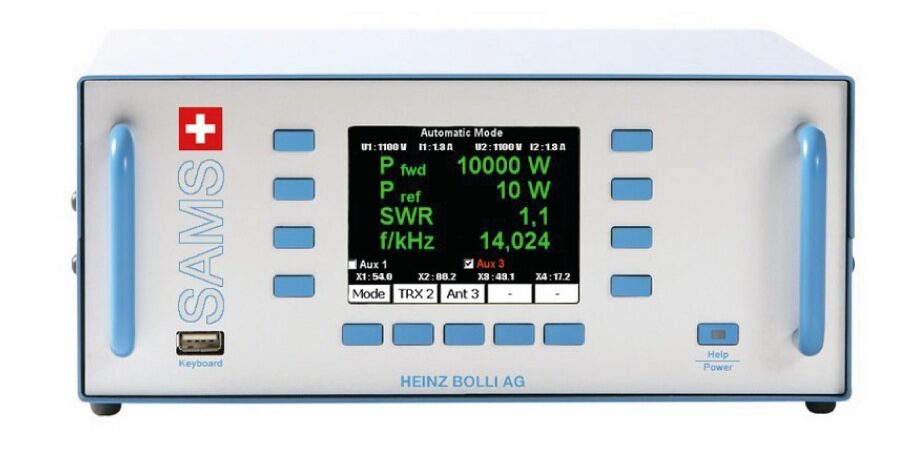

High-contrast TFT color graphic display 3.5 “. High luminosity thanks to LED backlighting.
Comprehensive display function, controlled dynamically on the operating state. Display range: Equipment and station identifier, mode, adjusting the values ??of X1 – X4, frequency, forward power, reflected power, SWR, parameter values, system messages, alarms, multilingual user interface, help files and manual.
Power supply 24VDC / 40W.
Controlled and operated up to 4 antennas on fitting networks with up to 4 adjustment elements.
Frequency range 100kHz to 54MHz, 1 kHz frequency spacing or greater.
Multi-functional frequency, or tape recording of TRX-data interface (RS232 / CI-V), TRX-band voltage or directional coupler in the antenna line.
4 any useful additional functions (for additional C or L, and switching to any kind).

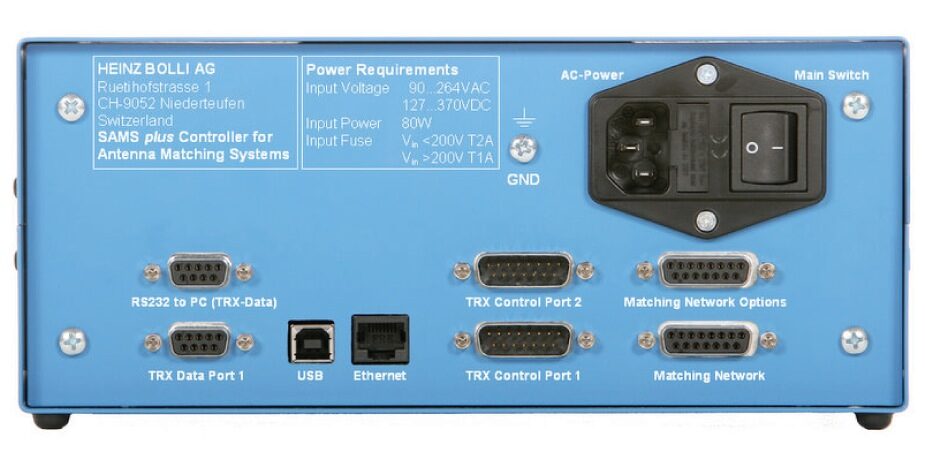

Connection for two transceivers, data interfaces for Electraft, Icom, Kenwood, Yaesu, etc.
Direct Connection for PC keyboard on front panel for device
Data interfaces to up to 2 transceivers (1 x CI-V, 2 x RS232, 2 x belt tension)
Isolated interface for subsequent TRX and PA control (TRX-release, TRX-Minimum Power, TRX-Send, PA-Off, PA-ALC (input), TRX-ALC (output)
USB interfaces for future remote operation via a PC, or for software updates.
SAMSplus offers totally new functions and operations, which are protected by international patents.
SAMSplus is modular. Various additional functions require the installation of optional modules, which are not part of the basic unit, or still in development.
All information on SAMSplus are still preliminary in nature. Changes to technical data, functional processes and device properties further, we reserve the right to express.
SAMSplus control unit for LC networks CHF 2415.00 ? 1860.00
SAMSplus control device for T-networks CHF 2565.00 ? 1980.00
Extra cost for optional fourth Matching element CHF 150.00 ? 120.00
SWD60 supply unit 100-230/24V CHF 70.00 ? 55.00
