Microham RF Vector Signal Meter 1,8 – 500MHz.

SMΩRF is the most powerful and accurate, in-line Vector RF power meter to date with accuracy rivalling the best professional instruments for measuring power and impedance, tons of extra features, and very high level of user customization to fit every hamshack, every operator’s needs.

SMΩRF connects to RF signal by remote sensor (directional coupler), available in several models for power levels up to 15KW and frequencies up to 500MHz. The meter can simultaneously measure two independent signals from two sensors.

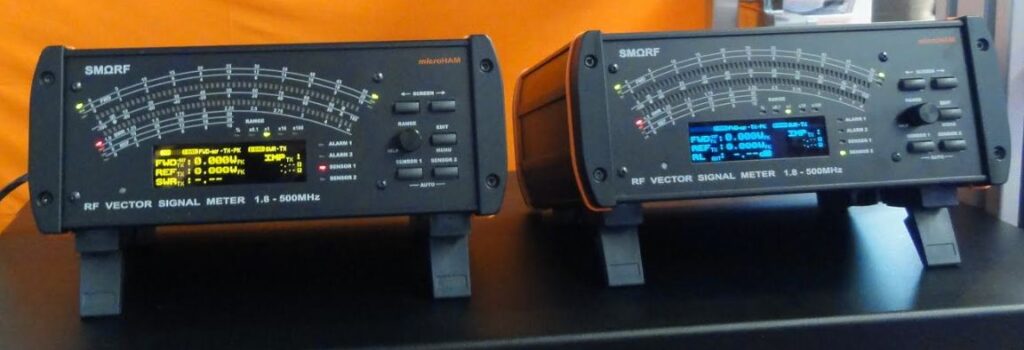

Photo by CQDX,ru

Main features:

• Every meter and every sensor is individually calibrated, storing over 10,000 calibration points per port for level, frequency, phase, and temperature
• Signed phase measurement covering the full (+/- 180 degrees) range up to 500MHz
• Hi-grade, dual 16bit, 125ksps ADC, captures overshoots lasting less than 10us
• Internal, high purity, DDS based test signal generator with 24bit, 160ksps DAC
• 210 MIPS, 32bit floating point DSP processor for extremely fast updates and accurate calculation of complex functions
•  Configurable display for power, impedance, reflection, waveform, spectrum, IMD …
• Display specialized for the analysis of CW, SSB, PSK, as well as special purpose displays for antenna measurements, PA linearity, SO2R, stacks, phased arrays …
• Native Ethernet port for remote connectivity, internal web server for seamless access from the browser, No drivers, no software installation
• Dual, high speed, three colour, user adjustable auto-ranging LED bar graph
• Wide viewing angle, high contrast graphics OLED display
• Internal speaker and rich external connectivity, 2x keying I/O, 2x iLINK, Serial Port, AUX
• More coming soon

Availability: 4Q/ 2014

Price TBD
