The fun Cube Dogle HF Converter

New equipment
0 Comment
Tags: new equipment,SDR,SWL
Date: 06 Nov 2014

Version 3.1

If you are a FCD owner I am sure you are a very satisfied with the quality and performance receiving satellites and all sorts of communications in VHF and UHF. However, the FCD only starts receiving properly from 64Mhz up, and misses all the good fun that is receiving HF and 6m on a SDR. That is why we decided to make a simple HF converter to the FCD, and get access on all the bands, extending the RX now from DC to 1700Mhz. The HF converter is very simple, as you can see in diagram, any person with some soldering experience in kit build, will have no problems to get it work properly.

By. Tony CT1FFU and Diogo CT2IRW

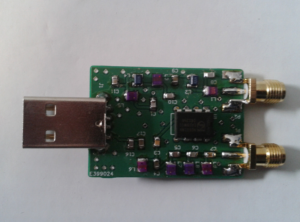

Version 3.1

Download the PDF File and Instructions Here:

HF-Converter Version 1.0
HF-Converter Version 2.0
HF-Converter Version 3.0
HF-Converter Version 3.1
Download PCB HighResolution Pic
HF-Converter Version 4.0
HF-Converter Version 5.0
Looking for Yaesu FT-847 70mhz pre-amp? look here:

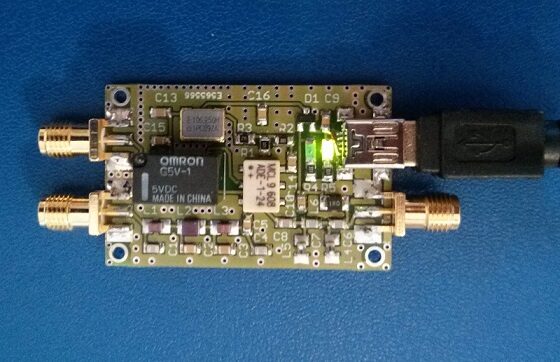

Version 5.0

Why will you choose this new Up Converter 5.0?

Smaller size PCB
4 new holes for screwing PCB
MiniUSB connector
2 led 5V indication USB/ Phantom Power
It runs with phantom power directly from Fun Cube Dongle’s SMA cable

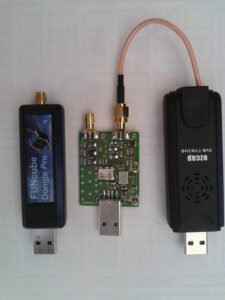

USB power for generic RTL TV dongle sticks
Separeted antenna inputs HF/6m and VHF/UHF
Automatic internal relay antenna switch: HF or Bypass VHF and UP
WFM broadcast filter avoiding saturation of SDR front-end
LED indication for converter running
DBM diode ring mixer 7 dBm: This ensures exellent HF reception performance
LO on 106.250 Mhz or 65.520Mhz: This avoids interference from WFM radios
Tests made by hams worldwide reveal exceptional clean reception on HF
Technical assistance after selling
Either ready built and tested or as KIT easy to build by yourself
Worldwide shipping and tracking is included in advertised price
You can now choose the LO freq: 106.250Mhz or 65.520Mhz models

Price:
Version 3.1 ready build and tested – 39€
Version 5.0 ready build and tested – 49€

For details contact: CT1FFU or CT2IRW
Link 1: www.dxpatrol.com
Link 2: www.radioamadores.net
E-mail: ct1ffu@gmail.com
