10% of full 1.5 KHz Modulation
on / off Ratio 1:9, Interruptions: 30 Hz
Output limited by Software
RTTY / CW / SSB: 20 KW / 40 KW / 105 KW
50 dB below rated output
33 dB or better

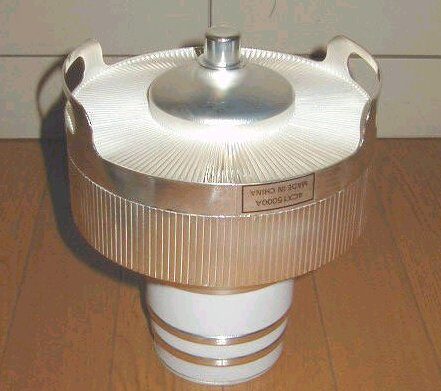

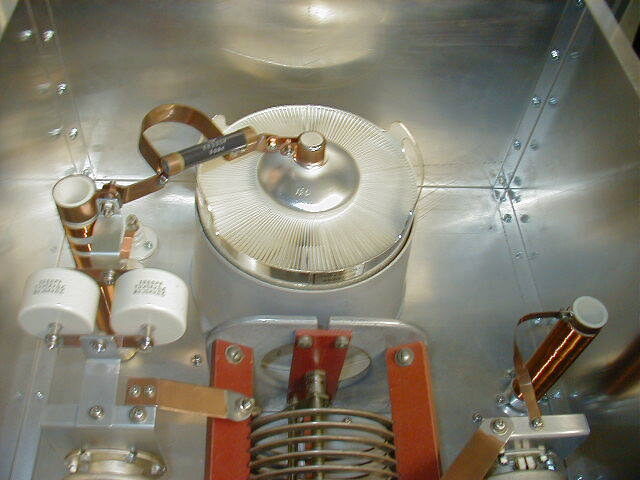

Two Eimac 4CX15000A
1:9 Transformation, 450 Ohm, 500 W HF Resistor, Tube Input Reactance Compensation & Neutralization for each Band
Fixed inductors 2+18 uH, Switch: Multi-Tech Model 92, Vacuum Caps: 500 pF var. / 15 KV + 2500 pF var. / 5 KV
Plate current (every 5 msec), SWR, all switching functions,
no relais switching under power conditions, soft start inrush, 10 sec delay time for full power, 2 speed turbine blowerWell regulated screen and grid supply for +ve and -ve currents as well as current limiting to protect the tube and minimize the IMD. It is impossible to override the screen and grid dissipation at any working conditions.
With CI-V (ICOM) interface (or similiar) from the transceiver: Complete auto tune on all HF amateur bands. Normal time for changing frequency: 1 second; Changing band: 2–4 seconds
Output, SWR, Plate current, Plate voltage, Screen & Grid current / voltage
High quality black eloxial aluminia
3 PHS 400 V / 50 A
540w x 610h x 960d mm³
Auto Tune by CI-V (ICOM) Interface
Remote Control Unit with optical cable 30m
SSB Tuning Aid
55800 € 3180 € 120 €
For additional details please contact to DC9DZ directly by E-mail address: firstname.lastname@example.org
