Micom4000 4 KW Power Linear Amplifier

QRO/QRP
0 Comment
Tags: amplifier,Big gun,energy,Linear amplifier,new equipment,PA,power,QRO,QRO/QRP,RF
Date: 29 Dec 2013

Offers BITE RS232 Interface Protection
Provides Automatic & Manual Bypass Backup
Delivers Automatic Step-down Levels

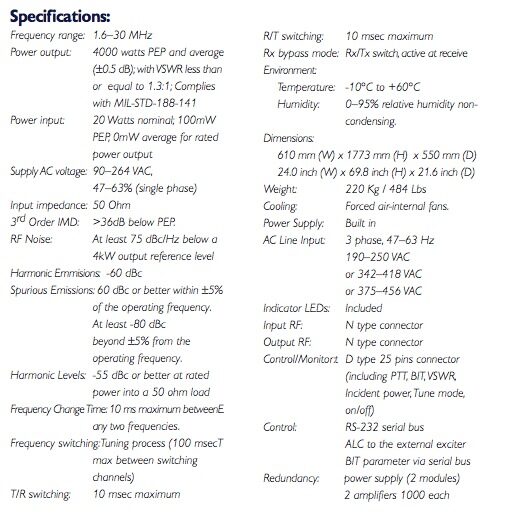

The Micom RM4000 delivers the most reliable radio communications, featuring the latest and most advanced technology that provides exceptional linearity, efficiency and operating dependability for a wide range communication applications. The Main Features of Micom RM400 Power Amplifiers It has been designed to work with Micom HF radio transceivers to offer users the best possible features and benefits in voice and data communications. Frequency Range: 1.6–30MHz Features Include:

Built-In-Test (BIT) Monitors Internal Conditions of the Amplifier’s Transistors Upon Request
Automatic Bypass Backup
Manual Bypass Selection
Automatic Step-down Levels

BITE RS232 Interface Protection:

Amplifier Module
Current Imbalance
Out-of-band Frequency Input
Short and Open RF Output
Input Overdrive
Under Voltage
High VSWR
Over-current
High Temperature

Price: TBD
