New Hilberling HPA-8000B 1KW HF Linear Amplifier

QRO/QRP
0 Comment
Tags: ,,,,,,,,,
Date: 07 Dec 2013

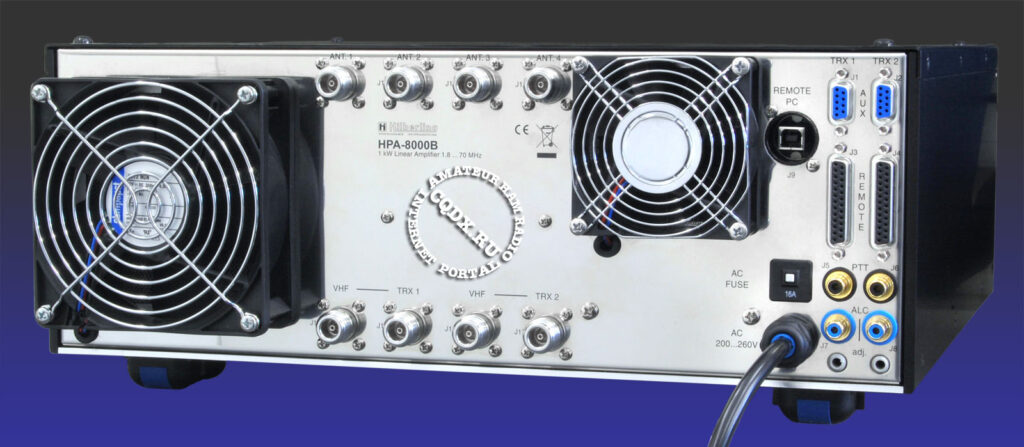

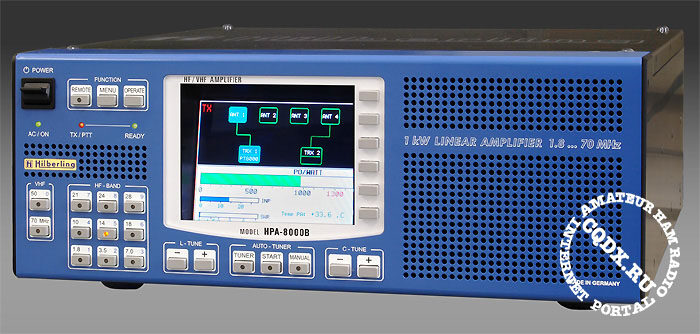

Hilberling HPA-8000B 1KW HF Linear Amplifier / Click picture to enlarge / :
Made in Germany

Specifications:

LD MOSFET Amplifier 1kW RF

Input Power:
Low –   2 – 3 Watts
High – 20 30 Watts

Output Power: 1kW

Freq. range: 1,8 … 70 MHz

Including Amateur Radio Bands:

160 / 80 / 60 / 40 / 30 / 20
17 / 15 / 12 / 10 / 6 / 4 m

All-Mode:
AM / FM / SSB / CW

  • 4 Antenna Connectors
  • 2 Transceiver Inputs
  • Fully Automatic Antenna Tuner 1.8 – 30MHz (max. SWR 3:1)
  • Fully Automatic Control : Transceiver / CAT Interface ( Band Switching )
  • USB – RS232 Interface for Programming / Remote Control
  • Manual Control : Band Buttons – PTT – / ALC Input ( RCA Sockets )
  • Protetive Circuit : Overcurrent, SWR, Temperature, Input – / Output Power

Price: TBD

Link

(Thanks to DK3HV for Info)
