Remote Internet operation via PC; Tablet or cell phone supporting all platforms like Apple IOS, Android, Linux and Windows
Different user selectable display

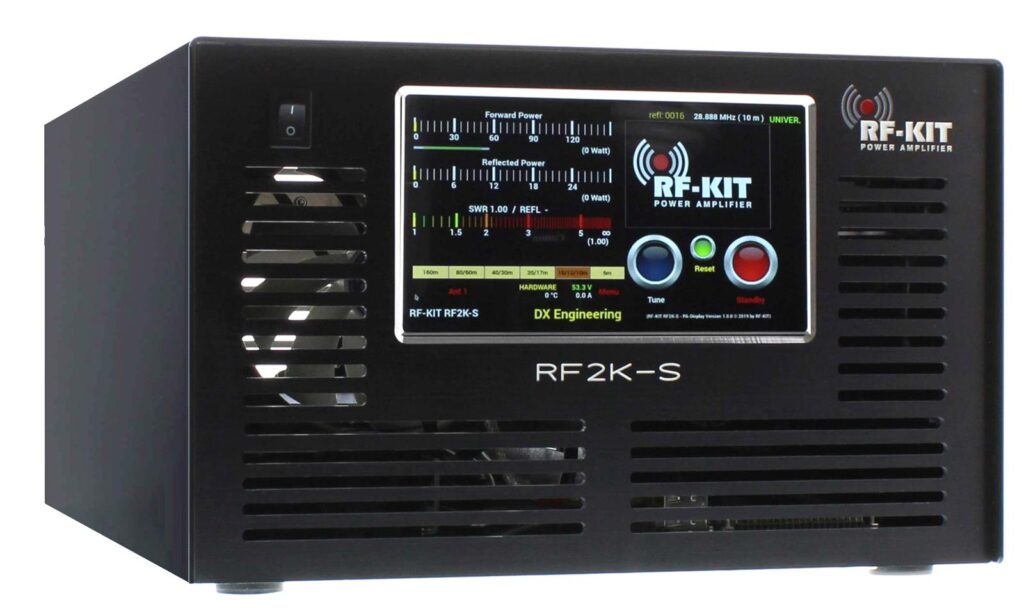

B26-RF 2K+ KIT 2018
Since the demand for assemblies has increased, it is unfortunately no longer possible to package and send all the individual parts. To make it easier for everyone, there will be only the B26-RF 2K+ Kit.
What is the difference to the parts already delivered and the PA KIT?
The PA kit is mechanically already fully assembled (ie all mechanical work such as drilling and thread cutting are professionally already done). The PA kit is already pre-wired, almost all components are mounted and must only completed by the HF cabling.
The PA kit will be available in 1 versions
with Automatic Antenna Tuner
We sell only kit’s – no parts !
If you need help to finish your kit – there some Ham’s they can do it for you. On request we forward the contact address to you and you can arrange direct with this guys.
WHAT’S INCLUDED WITH THE B26-RF 2K+ KIT
Mechanically constructed in the tried and tested housing (all holes, recesses and ventilation slots have been created with laser tools)
3KW power supply (manufactured for the IT industry)
Power supply +5, +/-12V installed
Relay board for 1 TRX IN and 4 Antennas OUT
Very accurate power measurement by newly developed own measuring coupler
RF2K5 PA module with 2x BLF189XR completely assembled and bias already matched!
(Built up on copper plate and a heat sink calculated for this PA thermally connected and screwed)
B26 RF01 Controller (monitors all functions and sequences in conjunction with its Arduino and the Raspberry PI)
Software on Micro SD card for Raspberry 3 / 3+ is included
7 “touch panel already installed in the front panel
Intermediate plates for recording LPF and tuner installed
Necessary HF coax cable to complete the PA
Documentation (instructions, pictures, notes) is provided in io B26-PA
Software updates are available at rf-kit.de (online via Update Menu in PA)
WHAT IS NOT INCLUDED IN THE KIT
Raspberry PI 3 / 3+ ®, as it is everywhere to buy and it does not make sense to push it through
3 Fans since these can be adapted to the operating conditions
Who need a lot of maximum performance at eg. RTTY needs strong fans, which have then also more noise level, incorporate. Who need a lot of maximum performance at eg. RTTY needs strong fans, which have then also more noise level, incorporate. If you have normal QSO operation, you can install silent fans with a very pleasant noise level.
It requires 2 x 120x120x25mm fans and 1x 80x80x25mm fan (all 12V, 3-Pin).
The mounting points for the fans are easily accessible and the installation is therefore quite simple.
With the new kit, the logistics will be simplified and completion will be possible within a day, depending on the skill. Start early and be in the evening with the B26-RF 2K+ QRV.
WHAT STILL NEEDS TO BE DONE
install Raspberry PI 3
Obtain and install the fan
RF cabling (Relay panel IN → PA module → LPF → (tuner) → Relay panel OUT)
It is still enough to provide enough power to understand the PA. Who knows his PA, can in the event of a defect also hand himself and repair it.
ACOM-2020S PA in details
Easy to operate
The overall operation of ACOM 2020S is extremely simplified: the touch screen menus are intuitive and easy to follow, no special skill is required from the operator when changing frequency...
ICOM IC-PW2 1 KW HF Linear Amplifier httpvh://youtu.be/x3qQQP22VVY
Take your contesting experience to the next level with the latest LDMOS power device with features supporting a SO2R operation in one amplifier.
Germini DX1200 HF Linear Amplifier
1.8-70MHz Solid State Linear Amplifier
1200W output 1.8-30MHz (1000W 50MHz, 500W 70MHz)
Drive level 50W (10W/25W optional)
Fully automatic band selection
3 antenna sockets
