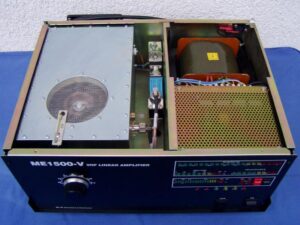

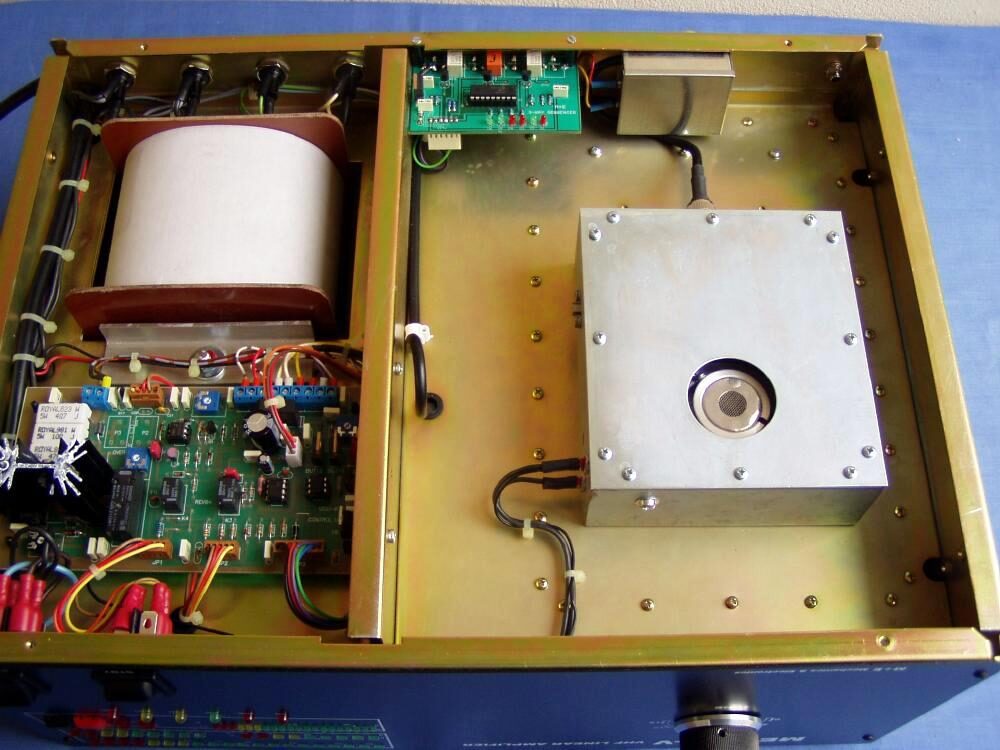

VHF Linear Amplifier ME1500-V (Made in Hungary)

Specifications:

• Frequency Coverage: 144-146MHz amateur band.
• Extensions and/or changes on request.
• Power Output: 1400 W PEP or 1000 W continuous carrier.
• Intermodulation Distortion: Better than 35 dB below rated output.
• Hum and noise: Better than 40 dB below rated output.
• Harmonic Output Suppression: Better than 50 dB below rated output.
• Input and Output Impedances:

– Nominal value: 50 Ohm unbalanced, UHF (N) type connectors;
– Input circuit: tuned, VSWR
– Bypass path VSWR < 1.1:1, 144-146MHz continuously, 100 W maximum;
– Output (antenna) impedance matching capability: VSWR up to 2:1

• Protection circuits:Ia>1000mA,Ig1>350mA,TMP>75C,SWR>2
• RF Gain: 12dB typically, frequency response < 1dB (80-100W drive power for rated output).
• Built in 3-way PIC controlled sequencer.
• Primary Power: 220-240 V AC, 50-60 Hz, single phase, 1800VA.
• Complies with CE safety and electromagnetic compatibility requirements.
• FAN :built in 230V/13W AC fan PAPST type 4605,12V/0.15A DC FAN

– Optional 120m3 radiall fan is available.

• Size & Weight : WxDxH: 410x340x185mm, ~29kg
• Operating environments:

– Temperature range: 0…+50 degs.Celsius;
– Humidity: up to 95% @ +35 degs.Celsius.
– Height: up to 3000m above sea level without output deterioration

Read also: ME1500-FD

Link

Price: TBD
