• 1.8-70MHz Solid State Linear Amplifier
  • 1200W output 1.8-30MHz (1000W 50MHz, 500W 70MHz)
  • Drive level 50W (10W/25W optional)
  • Fully automatic band selection
  • 3 antenna sockets
  • Vacuum relay QSK switched
  • Dual BLF188XR LDMOS
  • Touch screen full colour display
  • Network connected remote operation
  • Quiet temperature controlled fans
  • +10dBm pre-distortion output
  • 100-260V 50/60Hz supply
  • Dimensions 278w x 157h x 380d
  • Weight 15.5Kg



  • Power input: 10,25, 50W customer specified
  • Power output: >1.2 kW at P1dB (1kW on 50MHz, 500W on 70MHz)
  • 11th order IMD distortion: better than -70dB at 1kW
  • Harmonic suppression: better than 60dB (all harmonic products) (50dB on 50/70MHz)
  • Input VSWR: better than 1.5:1
  • Load VSWR tolerance: Max 2.5:1 high VSWR trip (we recommend use of an external ATU above 1.5:1)

The Gemini DX1200 Solid State Linear Amplifier will give 1200W CW output on 1.8-30MHz, 1000W on 50MHz and 500W on 70MHz and is a Linear amplifier and so is suitable for all modes of operation – SSB/CW/RTTY/AM/FM/Data etc.

LOW IMD
The PA section uses a pair (yes two) BLF188XR LDMOS devices which are operated at reduced voltage and with higher than typical bias so achieve low IMD and still retain thermal efficiency.

INSTANT ON
And of course – being a Solid State Linear Amplifier there is no warm up. Turn on the mains and in 10 seconds it is ready to go! (and if powered up and on Stand By then when you turn it to ON it is instantaneous)

MULTIPLE ANTENNAS
The three SO239 antenna sockets on the rear are selectable by band (Ant A is direct through when the amplifier is switched off). There is one SO239 rig input socket. N-Type sockets can be specified as an option for any or all of the sockets.

AUTO BAND SELECTION
No CAT interface to your rig is required as the DX1200 has fully automatic band switching so no extra cables required. It will also work fine with any rig even if it has no CAT interface.

FULL QSK
A quiet vacuum relay for output switching enables the DX1200 to give reliable full QSK operation (at >40 wpm) at full output.

TOUCH SCREEN

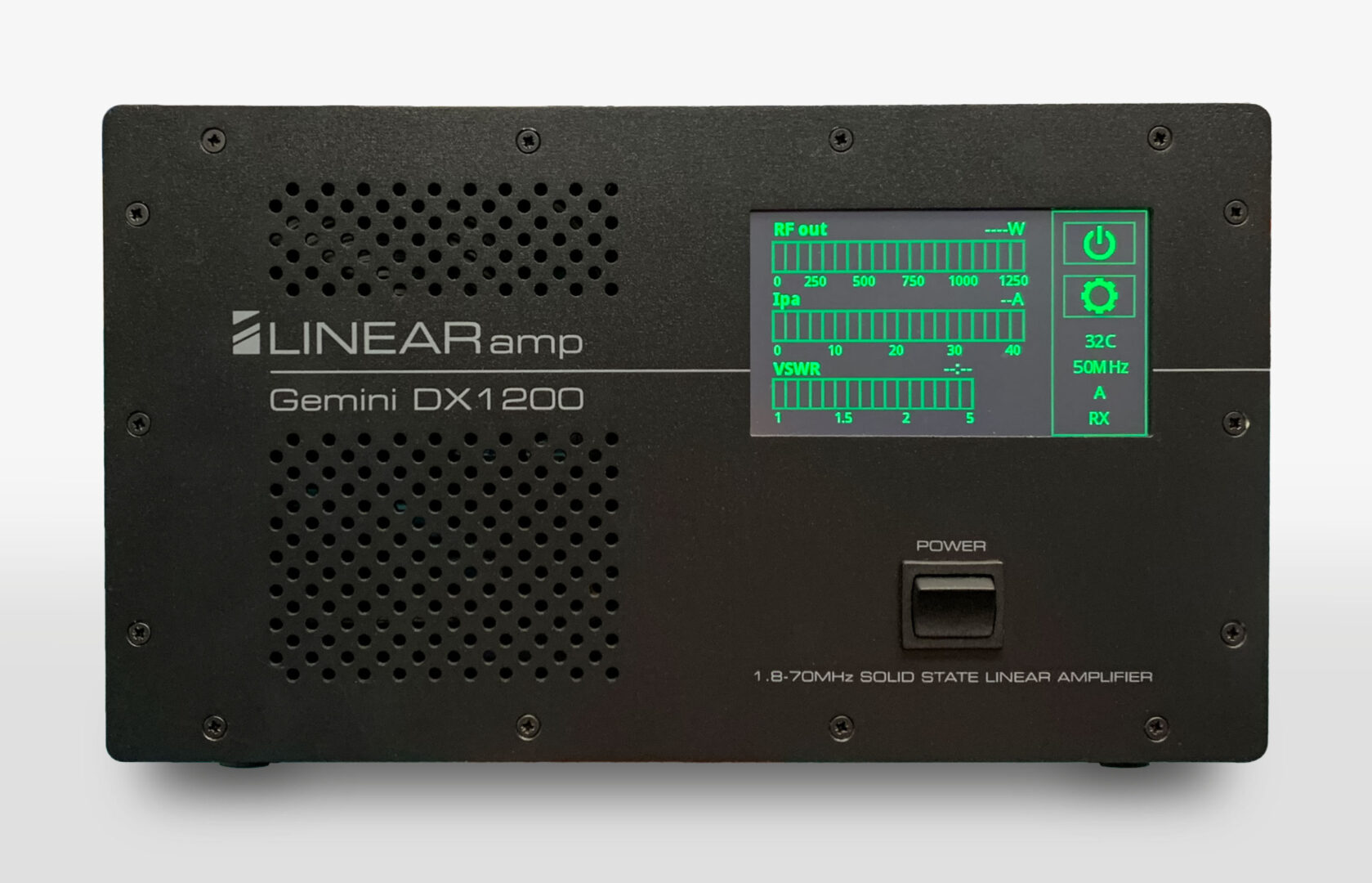

A full color touch screen display shows output parameters and is used to set up the antenna selection and other operating parameters. The screen has selectable color options including high contrast green on black or pastel blue on white.

REMOTE CONTROL
Full remote operation is possible via network using the software that is supplied free of charge (see link at the bottom of the page). This mimics all functionality of the amplifier (excluding mains power switching) and incorporates Omni-Rig interfacing and audible voice commands for visually impaired operators.

QUIET
Cooling – The Gemini DX1200 uses a high surface area heatsink that occupies nearly half the volume of the entire amplifier and a huge 10mm thick copper spreader to dissipate heat. The main fan used is just 28.6dB(A) and is proportionally temperature controlled so heat is removed quietly and efficiently – this makes the DX1200 really very quiet in operation.

The DX1200 has High, Medium and Low power operating modes. These alter the Vdd (drain voltage) level and so allow much greater thermal efficiency at lower outputs – something else you can only do with a Solid State Linear Amplifier.

The integral power supply allows automatic operation from 100-260V 50/60Hz so can be used worldwide (with just a fuse change needed, nothing else).

COMPACT SIZE
DX1200 is small – just 278mm wide, 157mm high and 380mm deep (excluding feet and rear projections) and with 15.5Kg weight is manageable easily for portable and DXpedition use as well as in the shack.

A +10dBm (at 1000W) rear panel SMA output is provided for pre-distortion or scope monitoring.

Finished in satin black the all aluminum chassis helps keep weight to a minimum whilst retaining strength (the front panel is 3mm material for instance).

Drive level as standard is 50W for full output making is compatible.

Estimate Price (Incl VAT) is £2,749.00
