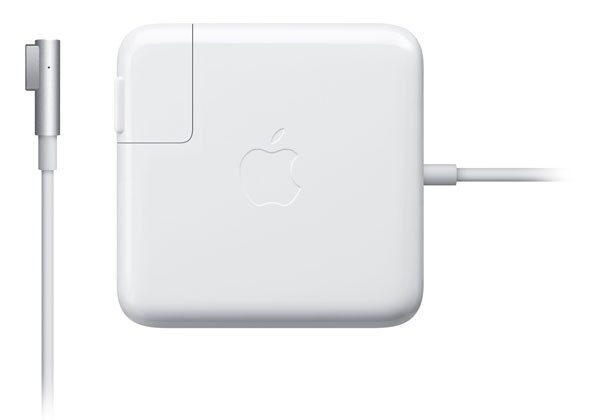

This repair valid for APPLE MBP “MagSafe Power Adapter with “L-Type” Power Plug
This problem happens quite often, for APPLE “Mac Book Pro” users. In some cases the power supply plug is broken.

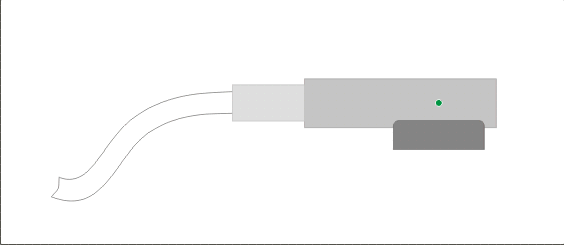

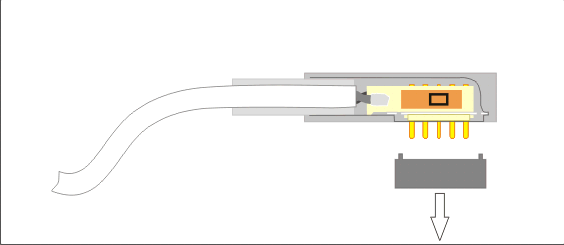

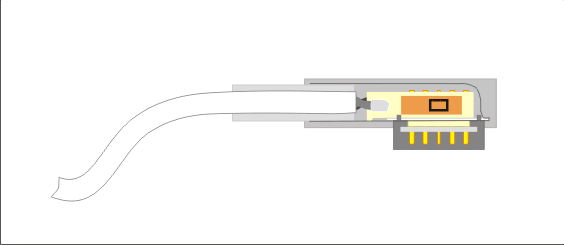

I fixed this problem myself (See pictures below). But, first some introduction how’s plug looking inside:

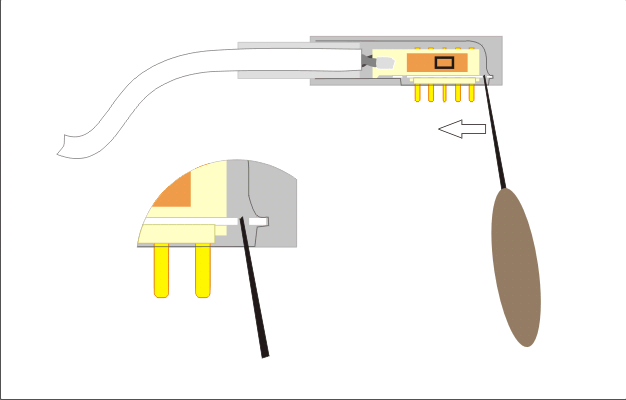

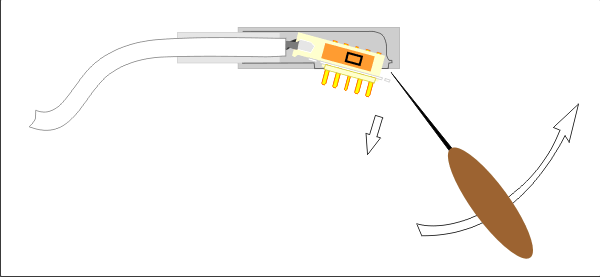

Now time to repair.
Note: Be careful during the dissembling a plug.

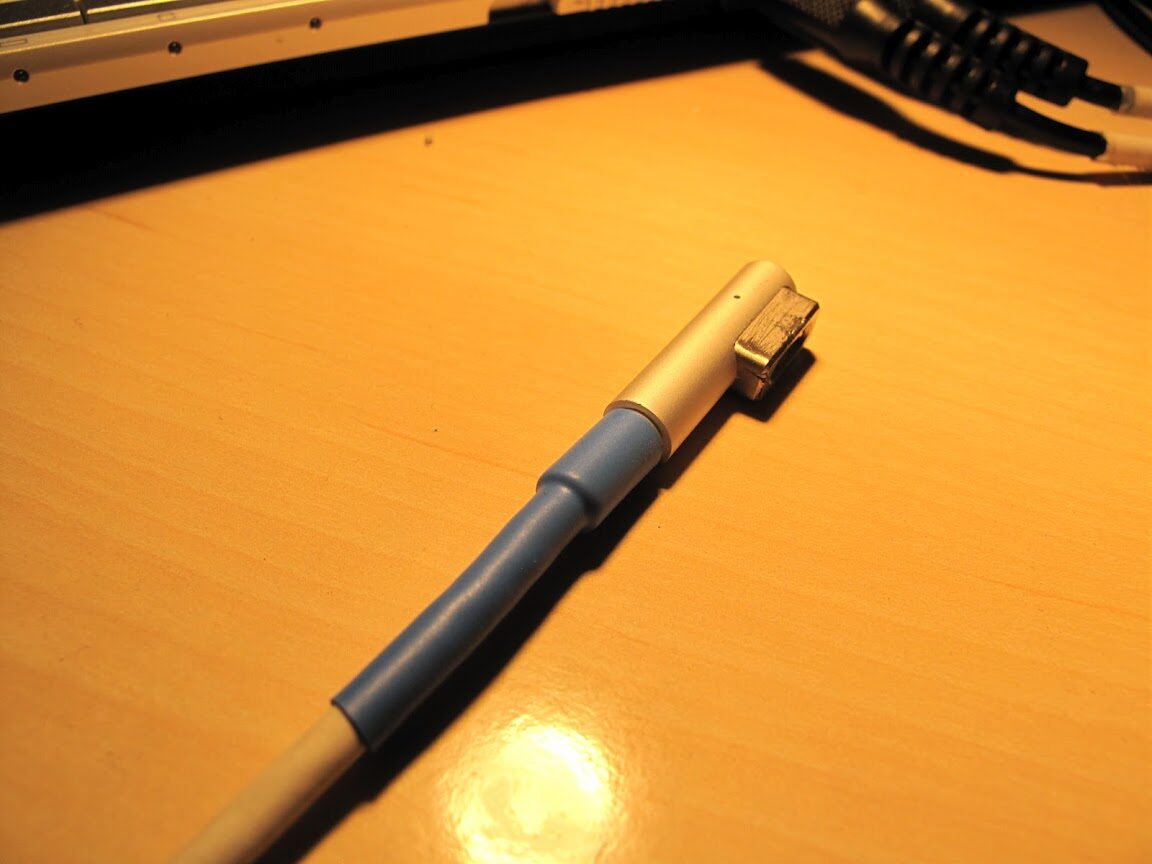

Finally I’ve repaired my Power “L-Type” plug and everything working fine. The problem was in the broken wire inside.
Related Posts
Organizing and filtering the spots from your favourite DX Cluster for DXing, casual Contesting or rag-chewing. MacLoggerDX supports close to a hundred radios, automatically tuning to the spots you are interested...
Updated to: Version v6.04b39 Requires OS X 10.9+. macOS 10.12 (Sierra) compatible. Added 2D Map VUCC Grid square overlay. Added Bands worked/confirmed to VUCC awards table. Added Grid...
Updated to: OS X 10.9+ and Intel 64 bit Processor. Added prosign elision to DTR/RTS CW Keyer. Added File menu Show Log command. Added File menu Compress Log command. Added Labels margin...
8 Comments for DIY : Repair the “Mac Book Pro” “L-Type” Power Supply Plug
admin
Hmm … I have repaired follow to Instruction and all is OK.
ValveHouse
Didn’t work for me either. The inner plug on later models (after 2012) is bedded in epoxy and cant be removed without destroying it.
Me
Did work for me. Got a 2009 charger that wasn’t epoxy’d down. There was a load of glue (not epoxy, but a different type) on the top side (the ‘head’, not the tail where the cable enters) all around it, but that was pretty easy to scrape away. After fix, it was a bit hard to make sure the ferrous head was aligned properly as one of the guiding pins had bent a bit, but it worked anyway.
Pip
Thanks! It worked for me on a 2010 macbook supply. Just knowing you can pull off that first casing and slide the connector to the left would have saved me hours of hair-pulling!
On mine, the sheilding wires had torn away, so it was a simple case of soldering in a bridge of mutli-strand wire.
Alexis
Thank you, but I have one important question. Why have not you come up with a form or tool that will prevent cable failure due to tightness?
Luis
The more I see about Mac the more I dislike Hardware Lock-in…
My Hackintosh works ok.
My PC works ok
My friend’s mac works ok until the moment it needs maintenance… every little maintenance it needs he has to send it back to the warranty and it costs a lot
Matthew
Thank you so much!! it really works
Hmm … I have repaired follow to Instruction and all is OK.
Didn’t work for me either. The inner plug on later models (after 2012) is bedded in epoxy and cant be removed without destroying it.
Did work for me. Got a 2009 charger that wasn’t epoxy’d down. There was a load of glue (not epoxy, but a different type) on the top side (the ‘head’, not the tail where the cable enters) all around it, but that was pretty easy to scrape away. After fix, it was a bit hard to make sure the ferrous head was aligned properly as one of the guiding pins had bent a bit, but it worked anyway.
Thanks! It worked for me on a 2010 macbook supply. Just knowing you can pull off that first casing and slide the connector to the left would have saved me hours of hair-pulling!
On mine, the sheilding wires had torn away, so it was a simple case of soldering in a bridge of mutli-strand wire.
Thank you, but I have one important question. Why have not you come up with a form or tool that will prevent cable failure due to tightness?
The more I see about Mac the more I dislike Hardware Lock-in…
My Hackintosh works ok.
My PC works ok
My friend’s mac works ok until the moment it needs maintenance… every little maintenance it needs he has to send it back to the warranty and it costs a lot
Thank you so much!! it really works
It didn’t work for me. The plug’s PCB was glued tight to the head. When I tried to loosen it the way described, it broke in two, because the back side was still glued (and unreachable). Too bad, have to buy a new one. It seems that the author had some luck, in his case it clearly wasn’t glued that tight.
