Expert Electronics LLC. DUC/DDC Stand Alone Software defined Radio SunSDR-MB1.
Made in Russia.
Click to pic. enlarge.

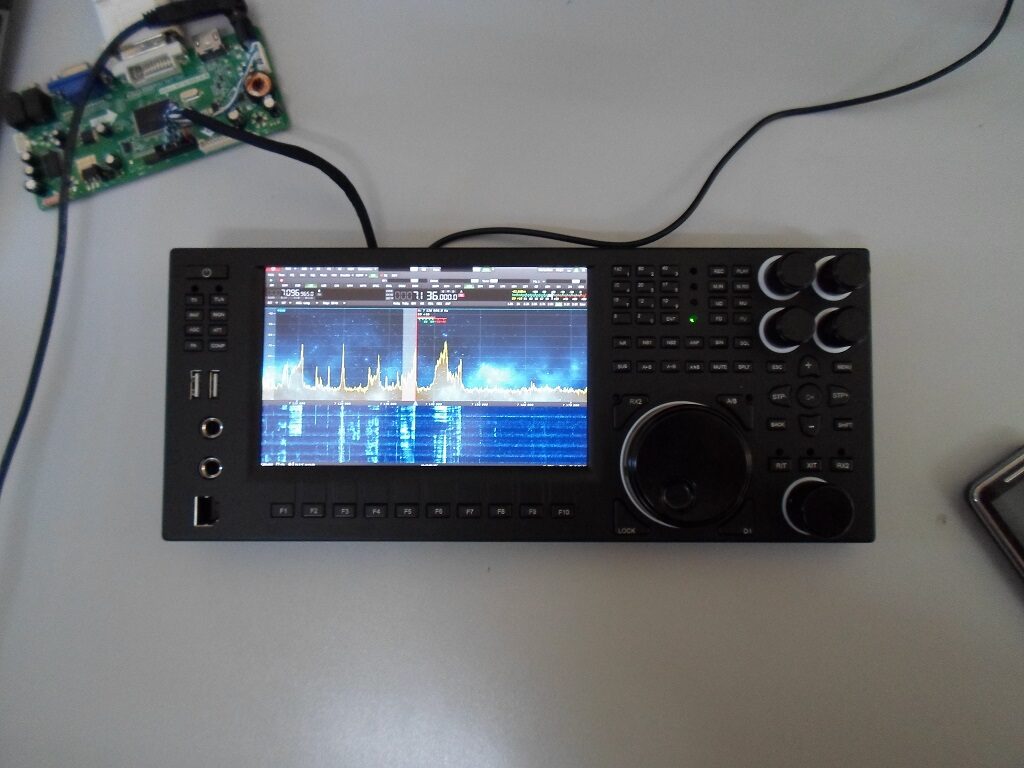

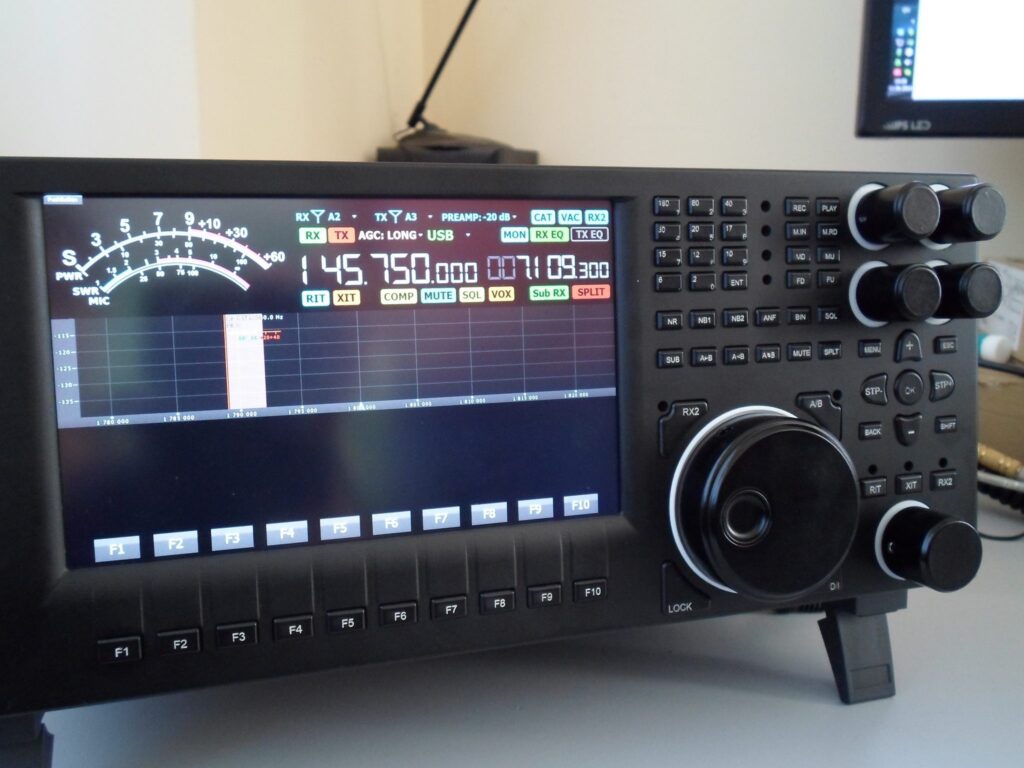

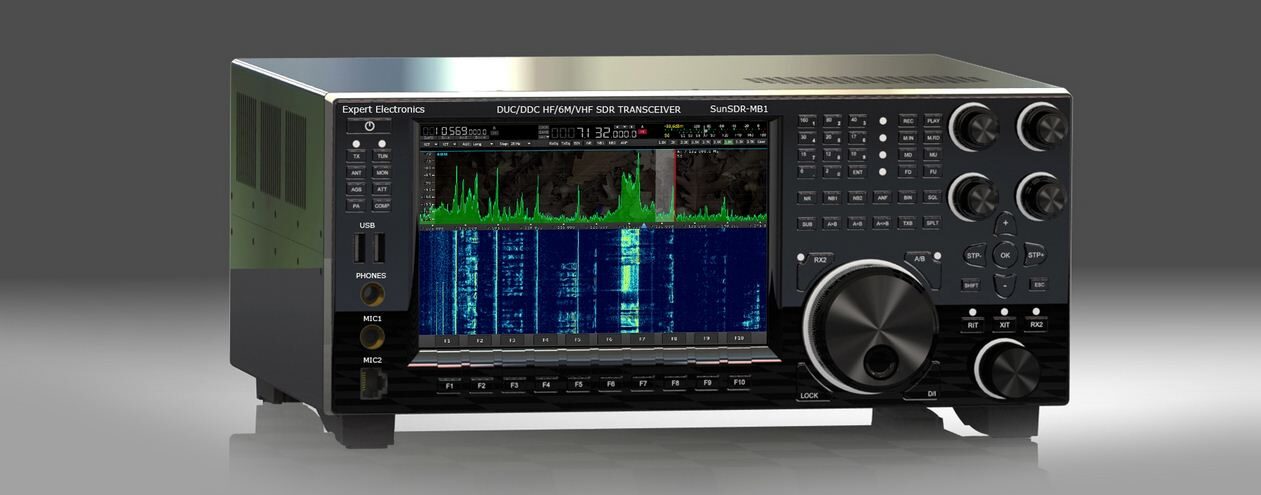

This is a “SunSDR-MB1” HF/6M/VHF transceiver.

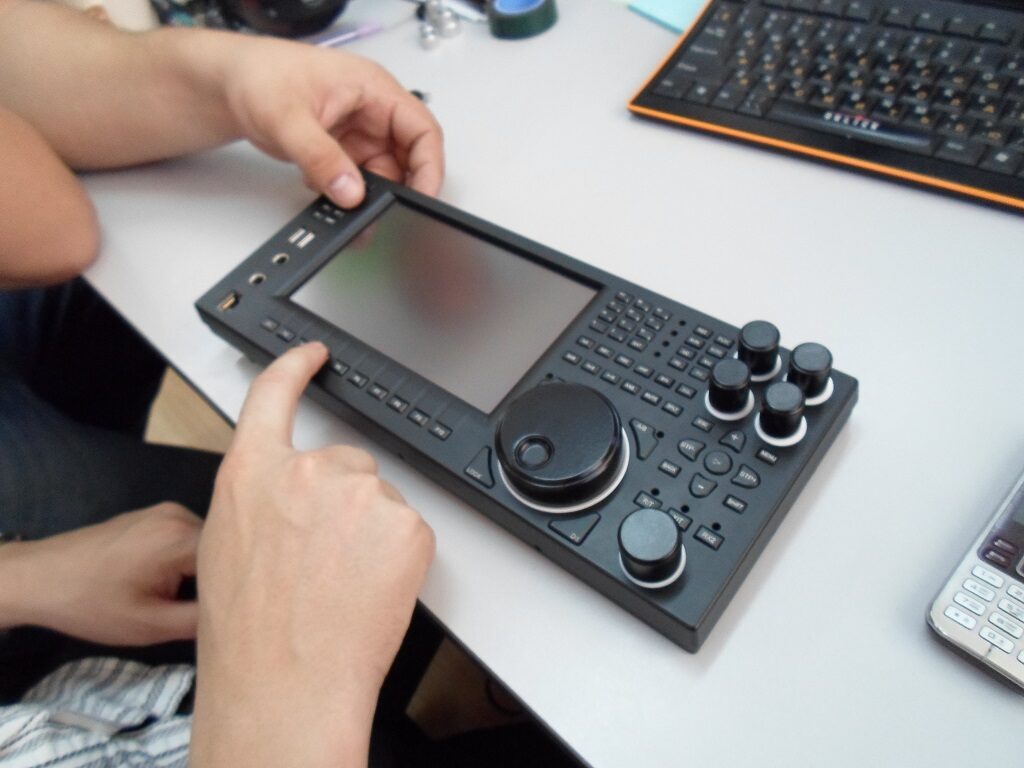

In one box we have : Full PC (Micro-ITX PC, Intel Core i5 CPU, full blown Windows 7 (or Linux Ubuntu)), transceiver’s hardware core based on SunSDR2 transceiver, 125W PA, PA LPF, ATU(option), Antenna switch, GPS receiver(option), WLAN(option), 7″ display, Fully reprogrammable front panel (all buttons and all knobs), green highlight of all buttons and a main knob. Also additional HDMI connector for external a big display.
User can push one button (20 sec start time/ 5 sec finish time) and can works in radio air without Keyboard and mouse. If customer wants he can use mouse and keyboard for extended transceiver’s control and for working with Logger, DIGI software etc., which installed inside the transceiver.
It is more than a simply classical transceiver, it is more than simply mono-block (PC+SDR), this is new generation in HAM transceivers – fully DUC/DDC Software Defined Radio, fully Software Defined Front control panel!
Besides transceiver features:
Has a full computer inside with Intel Core i5 processor, or (optional) Core i7, with all the attendant features.
1. Installing digital communications programs.
2. Hardware contests and magazines.
3. Internet browsing, Internet clusters and other opportunities (e-mail, Skype, ICQ, TV …) associated with the Internet.
4. Viewing and listening to video and audio files.
5. Watching TV via USB port.
6. And a lot of others, everything just limited by your imagination.
Software: ExpertSDR2 (own software)
Direct conversion in RX/TX mode, in HF/VHF bands
Frequency range 0-80MHz, 80-160MHz
Wide band spectrum pan-adapter up to 80MHz
Two independent receivers
Full duplex mode (in the future – software defined).
High dynamic range of receiver: up to 119-120dB in the HF, and up to 114dB in the VHF.
Output power, nominal: 125W(HF), 30W(VHF)
IMD3 DR of transmitter: about 30-40 dB
Reference 10 MHz input
Very small CW delay: 10ms
ADC sample rate: 160MHz
ADC resolution: 16 bit
SFDR receiver: 78-82 dB
DUC sample rate: 360MHz
DUC resolution: 14 bit
High performance 24 bit Audio Codec on board
Connect to PC: LAN/WLAN(Ethernet/WiFi 802.11 g/n)
Power supply: 12-15V 1A(RX)/5A(TX)/ 220V 1.5-2 A.
Weight: 10 Kg

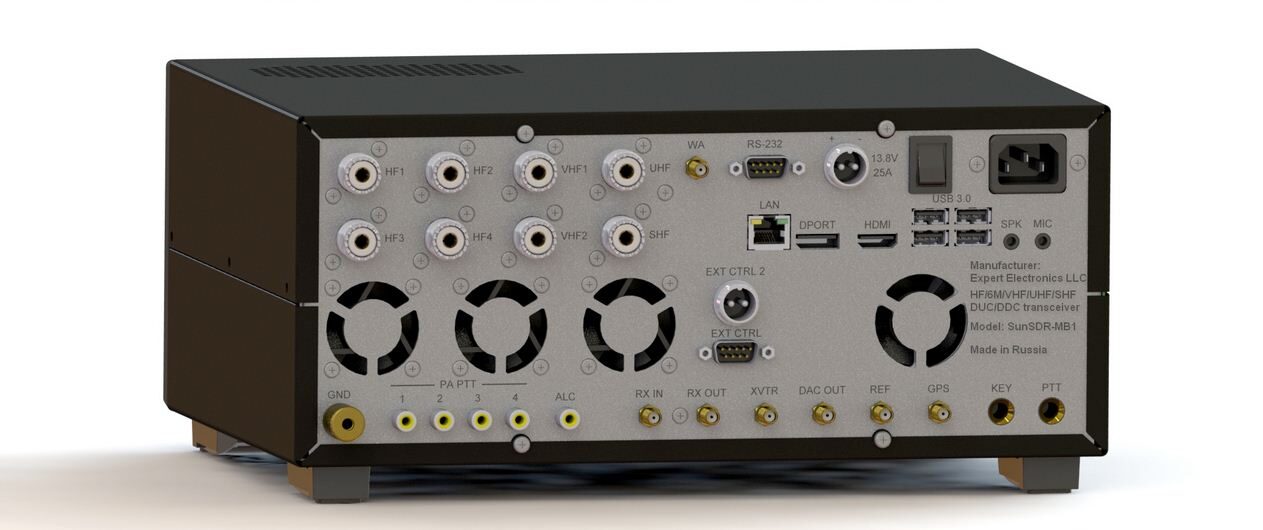

Two VHF antenna connector(SO239)
Two HF antenna connectors(SO239)
Wide RF input port direct connect to high speed ADC(SMA)(for XVTRX, measurement etc.) (SMA)
Wide RF output port direct connect to DUC(SMA)(for XVTRX, measurement etc.)
RX Out, uses with external BPF, ATT, P.AMP and ADC IN. (SMA)
Reference 10MHz input connector(SMA)
WiFi antenna connectors for 801.11 g/n up to 300Mb/s WAN(SMA)
ALC input port(RCA)
PTT input port(JACK 6.3mm)
CW Key input port(JACK 6.3mm)
External Control port with 9 power switch and RS-485 interface(D-SUB-15)
External Control 2 port for Automotive whip antenna 9310 from Stealth Telecom.
Electret Microphone input(line)(JACK 6.3mm)
Dynamic Microphone input with PTT switch for MH-31(RJ-45)
Headphones output(line)(JACK 6.3mm)
MIC, LIN, Phone(Jack 3.5mm) – Embedded PC’s sound card, for example, for Skype via your transceiver etc.
