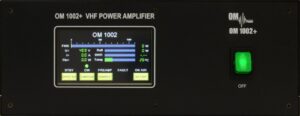

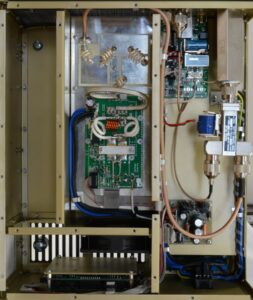

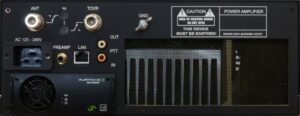

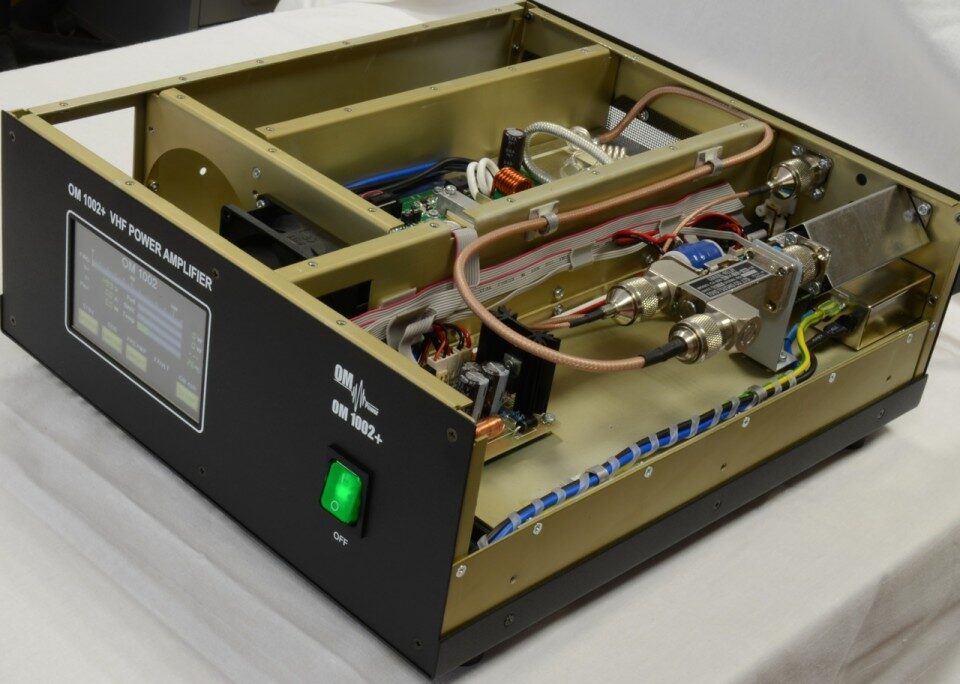

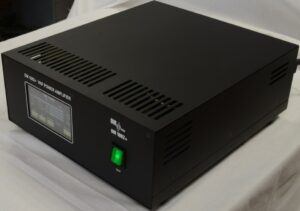

OMpower OM1002+ Linear Amplifier 144-148 Mhz 1kW. The solid state amplifier OM1002+ is designed for VHF amateur bands from 144 till 146 MHz and all modes. It is equipped with a with Freescale transistor.
Frequency coverage: VHF amateur bands 144 till 146 MHz
Power output: 1000 W CW, 800 W SSB and 600 W AM, FM and Digital modes
Driver Power: 7 W to 14 W
Input impedance: 50 Ohm VSWR < 1.5 : 1
Output amplification: 17 dB
Maximum output SWR: 2:1
SWR protection: automatic switching to STBY , when reflected power is 150W or higher
Intermodulation distortion: 35 dB below nominal output
Suppression of harmonics: < -60 dBc second
Cooler: 3 pc’s axial blower
Power supply: 100 to 240 V – 50/60 Hz
Protection circuits: – SWR too high
– Drain current too high
– Input power too high
– Output power too high
– Gain too low
– Voltage too low
– Temperature too high
Display indications: – 140 x 16 dot graphic display
LED indicators: – OPERATE / STBY
– CW mode
– Preamplifier ON
– ON AIR
Price: 2.200 €
