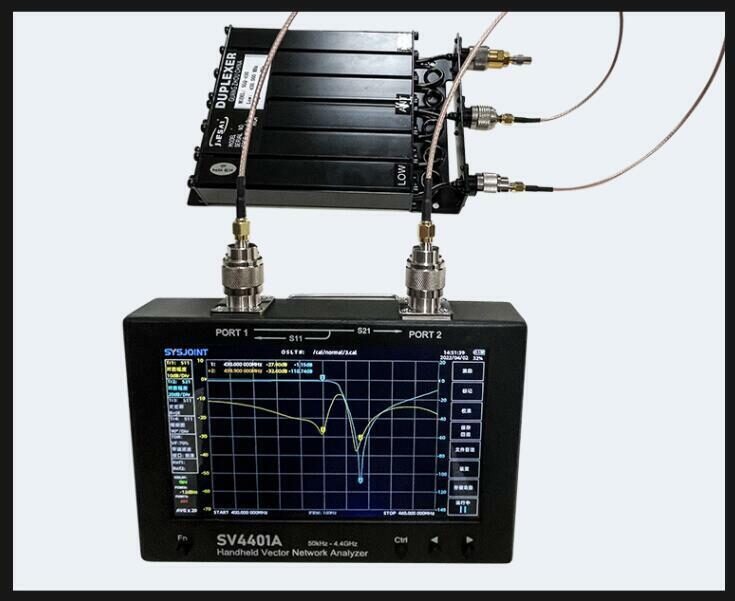

Vector network analyzer NanoVNA 100 dB dynamic range 50KHz-4400MHz with 7 inch touchscreen
Product performance:
1. Measuring frequency range: 50 kHz – 4400 MHz;
2. RF output power: adjustable from -12dbm to -42dbm (step 1db) (full frequency range error: plus or minus 1db);
Frequency accuracy: ±1ppm, ±5KHz >140MHz
4. Dynamic range S21: 90dB (below 2GHz), 75dB (4.4GHz) (25 times average and 100Hz IF are on), when 100Hz and 25 times average are on, 100dB dynamics below 1.3GHz can be achieved.
Dynamic range 5.S11: better than 50dB
Port return loss 6.2: 30 dB typ. (1.5 GHz), min. 20 dB (4.4 GHz)
7.USB interface: USB Type-C Communication mode: CDC (Serial)
Number of calibration points: 101-1001 points
9. Number of scanning points: 101-1001 points
10. Track display: 7 tracks
11. Marker: 8 marker points (the marker bar can be moved anywhere on the screen)
12. Save settings: 12 (quick menu) (after saving, it can be accessed directly at the next startup without the need for recalibration, and the parameters saved before the last shutdown will be automatically recalled at the next startup. and the function for automatic Added saving of start and end frequencies, which is convenient for the next call). Built-in file storage, basically unlimited storage units can be stored depending on the capacity of the TF card.
13. Scanning speed: about 400 points per second
14. It can measure S-parameter, voltage standing wave ratio, SWR, Smith chart, phase diagram, group delay, TDR function…;
15. With a 7-inch high-brightness IPS capacitance touch screen, the viewing angle of IPS TFT (1024×600) is almost 180°, and it will not hurt the eyes for long-term use; Pay)
The metal casing is used to effectively shield electromagnetic interference and make S21 better than 100dB dynamic range within 2GHz
17. Compact design, body size 195mm*150mm*35mm, small and portable; outer packaging size: 25x20x7cm
18. The radio frequency interface is L16-F (female connector), which facilitates the connection of various DUTs;
19. The standard configuration uses two 18650 batteries with a total capacity of 6600mAh, and the battery life is 4 hours; (You can change it to install two 21700 battery holders, the capacity can reach 10000mAH and the battery life is about 6 hours).
20. Full touch screen design, supports 4 front panel buttons at the same time, flexible and convenient operation;
21. Chinese and English menu support;
22. Support screen brightness adjustment;
23. Update the firmware via virtual USB disk, no programming device is needed and the firmware can only be updated via USB cable;
Expand a USB power output interface, 5V/1A output (can be used as a power bank);
24. With a high current 2A charge controller, the charging time is shorter;
25. Support host computer, you can use the computer as an operation interface display;
26. Net weight: 1160 grams
27. Total weight of outer packaging: 1590 grams.
28. Support screenshots and upload screenshots to computer.
Operation video:
Firmware upgrade method:
Connect the computer with a data cable, press and hold the Ctrl key while turning it on, click Udisk from Yawang, you will see a USB flash drive on the computer, copy the upgrade file to the USB flash drive, overwrite the original file, power off, press and hold Ctrl to open the A dialog box will appear i Click Upgrade, wait for completion and then power off and reboot.
Packing list:

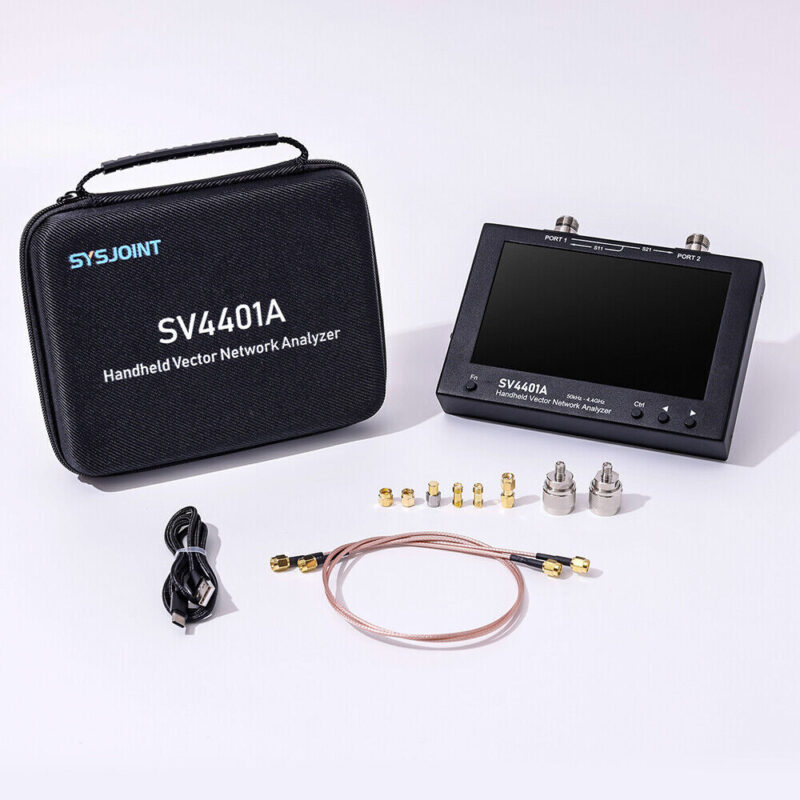

SV4401A Host x1
N to SMA adapter x2
SMA Open/Short/Load calibration set x1
SMA dual female straight adapter x2
SMA double female straight adapter x1
50cm RG316 cable x2
USB Type-C data cable x1
Two-in-one capacitive stylus x1
High quality windshield wiper x1
Estimate Price: 300-400 EUro
