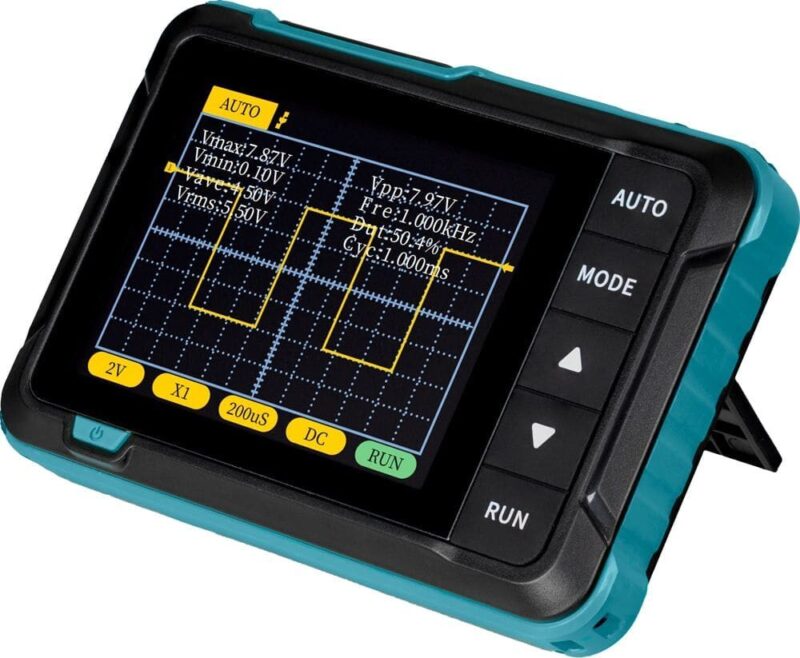

Experience precision measurement accuracy and portability like never before with our new DSO-200 handheld oscilloscope. Designed for electronics hobbyists who value precision and portability, the DSO-200 puts top performance in your hands. The DSO-200 fits comfortably in your hand and is easy to store in your workshop or on your desk thanks to its foldable stand and compact, sturdy design. The easy operation and mobility make the DSO-200 your perfect companion.

Integrated stand that can be folded through 90°

Technical data:

  • Display: 2.8″ 320×240 LCD display
  • Sampling rate: 2.5 MS/s
  • Bandwidth: 200kHz
  • Vertical sensitivity: 10 mV/ Div – 20 V/ Div
  • Horizontal time range: 10 μs/div – 50 s/div
  • Test voltage range: X1: 80Vpp (-40V – 40V) X10: 800Vpp (-400V – 400V)
  • Trigger modes: Auto, Normal, Single
  • Coupling: AC, DC
  • Calibration (square wave): Frequency: 1 kHz Duty cycle: 50%
  • Battery: 1000 mAh lithium battery, rechargeable via USB-C (5 V / 1 A)
  • Dimensions: 99x69x20 mm
  • Scope of delivery:
  • DSO-200
  • USB-C cable
  • Hand strap
  • Oscilloscope probe
  • Test clamp with crocodile clips
  • BNC adapter
  • Instructions

Price: €49.95
