Stable 1 kW RF power over a wide frequency range
The IC-PW1EURO can be used on all HF amateur radio bands and the 50 MHz band. It delivers a stable, low-distortion output of 1 kW between 1.8 MHz and 54 MHz. This is available as continuous power, as required for RTTY and SSTV. Furthermore, this linear power amplifier enables full break-in operation. Optimal technical requirements for DX expeditions and contest operations. Guaranteed within the amateur radio bands.
Wide ALC Adjustment Range
The internal circuitry allows for a wide ALC adjustment range. This means the IC-PW1EURO can be connected to most HF, 6m, or HF/6m transceivers, not just Icom transceivers. Ask your dealer if the IC-PW1EURO is compatible with your transceiver.
Compact Housing

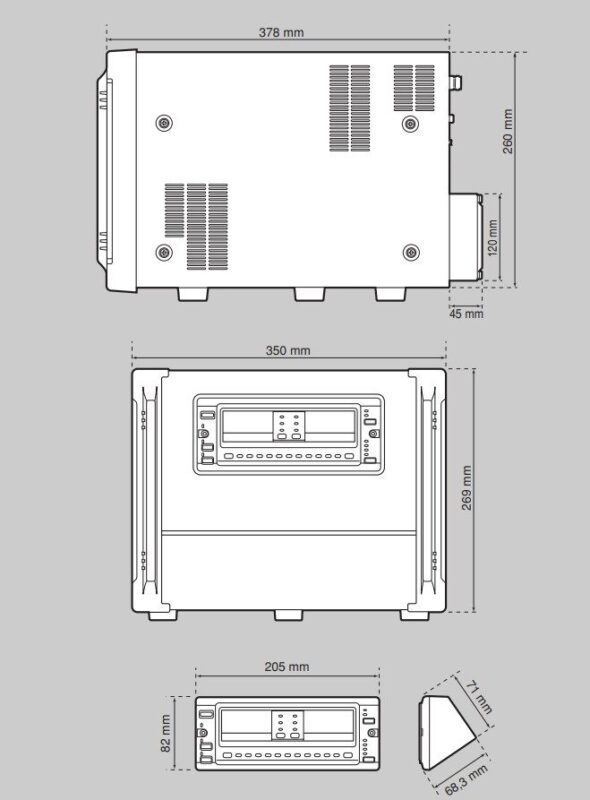

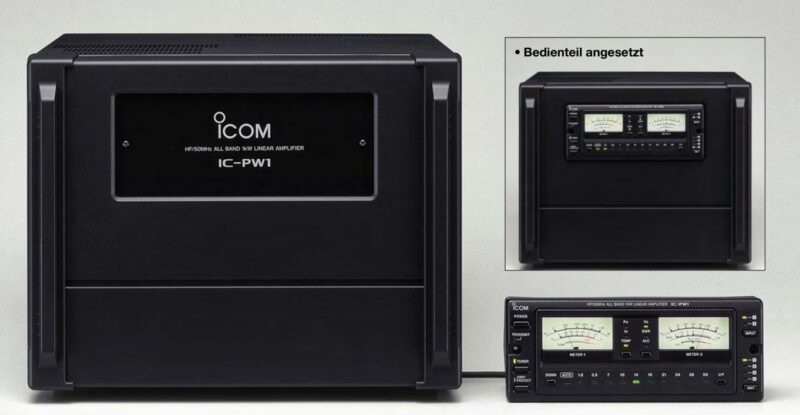

The dimensions of the housing, which houses the power amplifier, power supply, tuner, and control unit, are only 350 (H) × 269 (W) × 378 (D) mm. And because the control unit is removable, you can place the IC-PW1EURO anywhere in your shack.
Other exceptional features:
• Antenna connections are selectable from the transceiver (only with Icom transceivers), even when the IC-PW1EURO is turned off
• Automatic mains voltage selection
• Protection circuits respond to current (ID), voltage (VD), temperature, SWR, and output power
• Built-in automatic antenna tuner
Specifications:
Frequency range (MHz): 1,800 – 1,999 3,500 – 3,999
7,000 – 7,300 10,100 – 10,150
14,000 – 14,350 18,068 – 18,168
21,000 – 21,450 24,890 – 24,990
28,000 – 29,700 50,000 – 54,000
• Power supply: 180–264 V or 90–132 V AC
(single-phase supply, 50/60 Hz)
• Current consumption: max. 15 A (at max. output and 200 V mains voltage)
max. 20 A (at max. output and 100 V mains voltage)
• Operating temperature range: –10 °C to +40 °C
• Power handling: Continuous wave operation
• Input jacks: SO-239 × 2 (50 Ω)
• Output jacks: SO-239 × 4 (50 Ω)
Output power:
• Drive power: max. 100 W
• Spurious emissions: less than –60 dB (HF bands)
less than –70 dB (50 MHz band)
| Mains voltage: | 180–264 V | 90–132 V |
| CW, RTTY | 1 kW | 500 W |
| SSB | 1 kW PEP | 500 W PEP |
Tuning range: 16.7 Ω to 150 Ω (HF bands)
(Tuner button ON) 20.0 Ω to 125 Ω (50 MHz band)
• Tuning result: VSWR <1.5:1 or better
• Minimum required transmit power for tuning: 60 W
• Insertion loss: less than 1 dB (after tuning)
Included accessories:
● Separation cable for control unit ● Power cable
● Coaxial cable with PL-259 connectors ● OPC-853
Weight: 25 Kg.
